| Manufacturer | Hammond |
| Manufacturer Product Number | PJU12106 |
| Description | Fiberglass Box; NEMA 4X; 12.05x10.27x6.13 in; Solid; Lift-Off; Feet |
| Datasheet | Download Datasheet |
| Drawing | Download Dimensional Drawing |

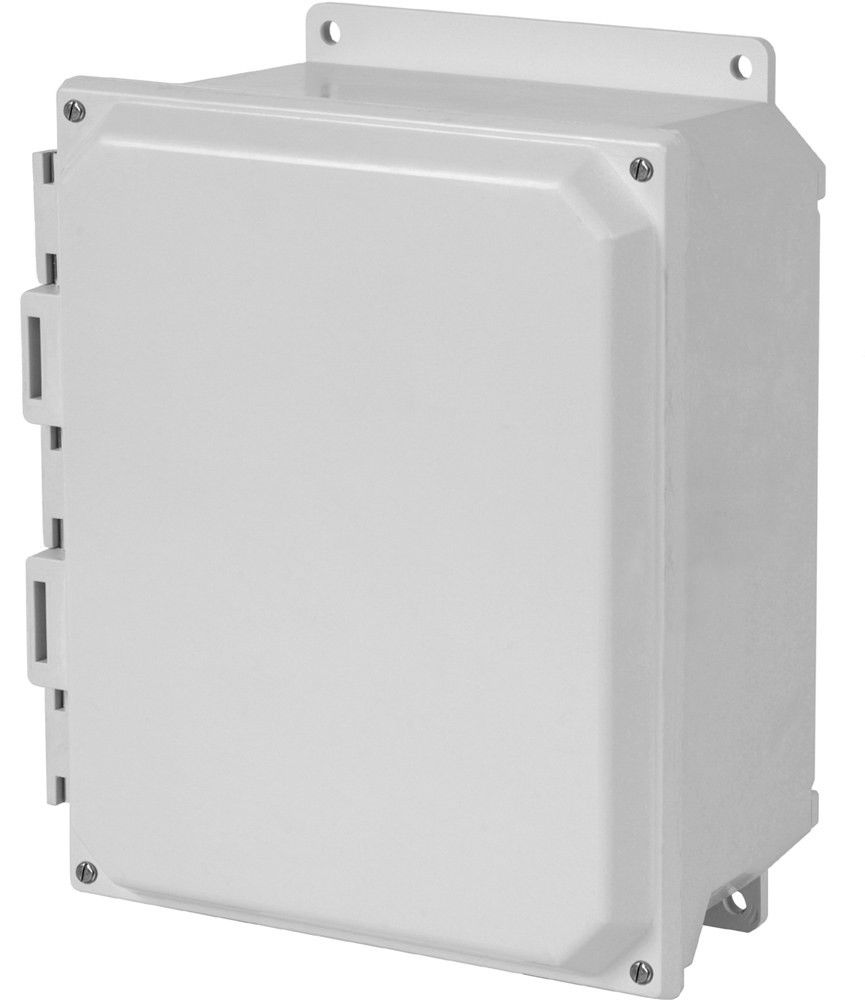

The Hammond Manufacturing PJU12106 is a compact 12.05 x 10.27 x 6.13 in NEMA 4X fiberglass box, made from fiberglass reinforced polyester and finished in Gray.
The removable inner panel measures 10.75 x 8.88 in, giving 95 sq in (616 sq cm) of mounting area.
| Category | |
| Manufacturer | Hammond |
| Material | Fiberglass Reinforced Polyester |
| Cover Style | Solid |
| Closure | Lift-Off |
| Mounting | Feet |
| NEMA Type Rating | 4X |
| IP Rating | IP68 |
| Enclosure Height | 12.05 in (306 mm) |
| Enclosure Width | 10.27 in (261 mm) |
| Enclosure Depth | 6.13 in (156 mm) |
| Size | 12.05 x 10.27 x 6.13 in (306 x 261 x 156 mm) (L x W x H) |
| Panel Height | 10.75 in (273 mm) |
| Panel Width | 8.88 in (226 mm) |
| Panel Included | Yes |
| Finish | Fiberglass polyester material has a gray finish. Optional inner panels are available in white powder coated finished steel or unfinished aluminum, or Fiberglass. |
| Color | Gray |
| Standards | UL 508A Type 1, 2, 3, 4, 4X, 12 and 13 (6P for solid covers only) cUL Type 1, 2, 3, 4, 4X, 12 and 13 (6P for solid covers only) per CSA 22.2 N |
