To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Hammond |
| Manufacturer Product Number | PJ18168RHW |
| Description | Fiberglass Box; NEMA 4X; 18.4x16.4x8.13 in; Window; Hinged; Feet |
| Datasheet | Download Datasheet |
| Drawing | Download Dimensional Drawing |

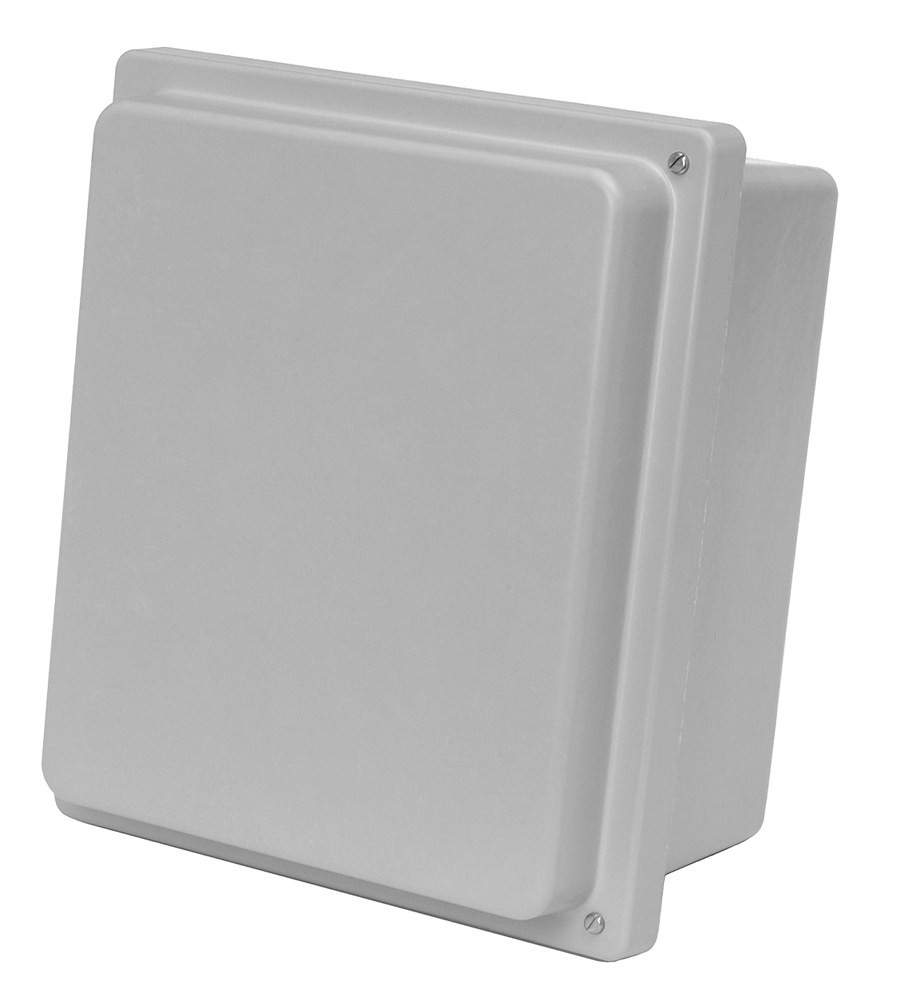

The Hammond Manufacturing PJ18168RHW is a mid-size 18.4 x 16.4 x 8.13 in NEMA 4X fiberglass box, made from fiberglass reinforced polyester and finished in Gray.
The removable inner panel measures 16.88 x 14.88 in, giving 251 sq in (1,620 sq cm) of mounting area.
| Category | |
| Manufacturer | Hammond |
| Material | Fiberglass Reinforced Polyester |
| Cover Style | Window |
| Closure | Hinged |
| Mounting | Feet |
| NEMA Type Rating | 4X |
| IP Rating | IP66 |
| Enclosure Height | 18.40 in (467 mm) |
| Enclosure Width | 16.40 in (417 mm) |
| Enclosure Depth | 8.13 in (207 mm) |
| Size | 18.4 x 16.4 x 8.13 in (467 x 417 x 207 mm) (L x W x H) |
| Panel Height | 16.88 in (429 mm) |
| Panel Width | 14.88 in (378 mm) |
| Panel Included | Yes |
| Finish | Fiberglass polyester material has a gray finish. Optional inner panels are available in white powder coated finished steel or unfinished aluminum, or Fiberglass. |
| Color | Gray |
| Standards | UL 508A Type 1, 2, 3, 4, 4X, 12 and 13 cUL Type 1, 2, 3, 4, 4X, 12 and 13 per CSA 22.2 No. 94 |
