To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Hammond |
| Manufacturer Product Number | PJ14126H |
| Description | Fiberglass Box; NEMA 4X; 14.13x12.26x6.13 in; Solid; Hinged; Feet |
| Datasheet | Download Datasheet |
| Drawing | Download Dimensional Drawing |

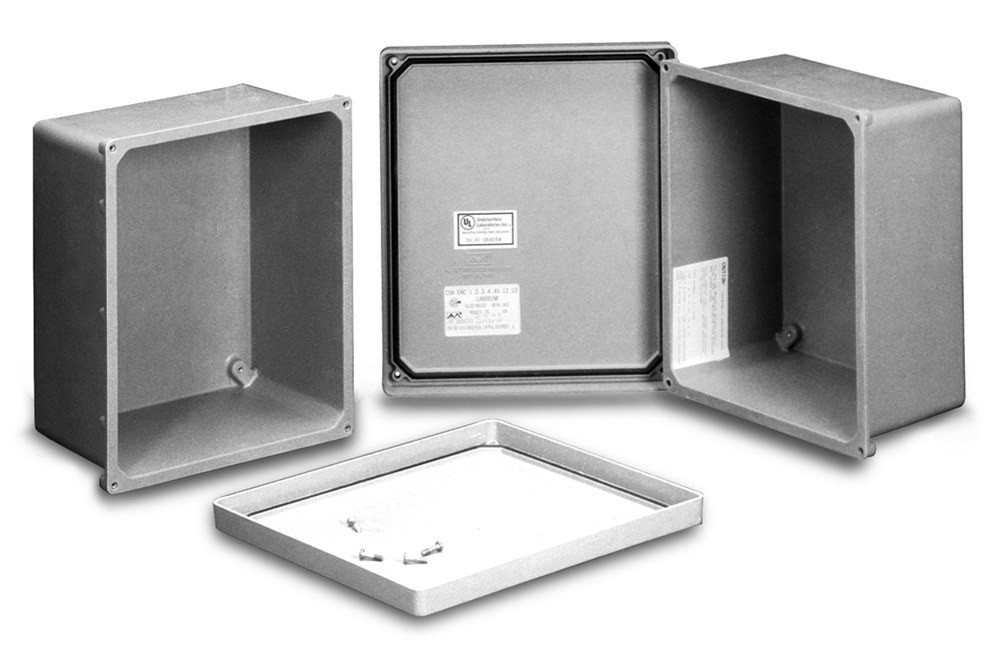

The Hammond Manufacturing PJ14126H is a compact 14.13 x 12.26 x 6.13 in NEMA 4X fiberglass box, made from fiberglass reinforced polyester and finished in Gray.
The removable inner panel measures 12.75 x 10.88 in, giving 139 sq in (895 sq cm) of mounting area.
| Category | |
| Manufacturer | Hammond |
| Material | Fiberglass Reinforced Polyester |
| Cover Style | Solid |
| Closure | Hinged |
| Mounting | Feet |
| NEMA Type Rating | 4X |
| IP Rating | IP68 |
| Enclosure Height | 14.13 in (359 mm) |
| Enclosure Width | 12.26 in (311 mm) |
| Enclosure Depth | 6.13 in (156 mm) |
| Size | 14.13 x 12.26 x 6.13 in (359 x 311 x 156 mm) (L x W x H) |
| Panel Height | 12.75 in (324 mm) |
| Panel Width | 10.88 in (276 mm) |
| Panel Included | Yes |
| Finish | Fiberglass polyester material has a gray finish. Optional inner panels are available in white powder coated finished steel, unfinished aluminum, or Fiberglass. |
| Color | Gray |
| Standards | UL 508A Type 1, 2, 3, 4, 4X, 12 and 13, UL 508A Type 6P (see table) cULType 1, 2, 3, 4, 4X, 12 and 13 per CSA |
