To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Hammond |
| Manufacturer Product Number | 1590ZGRP253BK |
| Description | Fiberglass Box; NEMA 4, 4X; 15.94x15.75x4.76 in |
| Datasheet | Download Datasheet |
| Drawing | Download Dimensional Drawing |

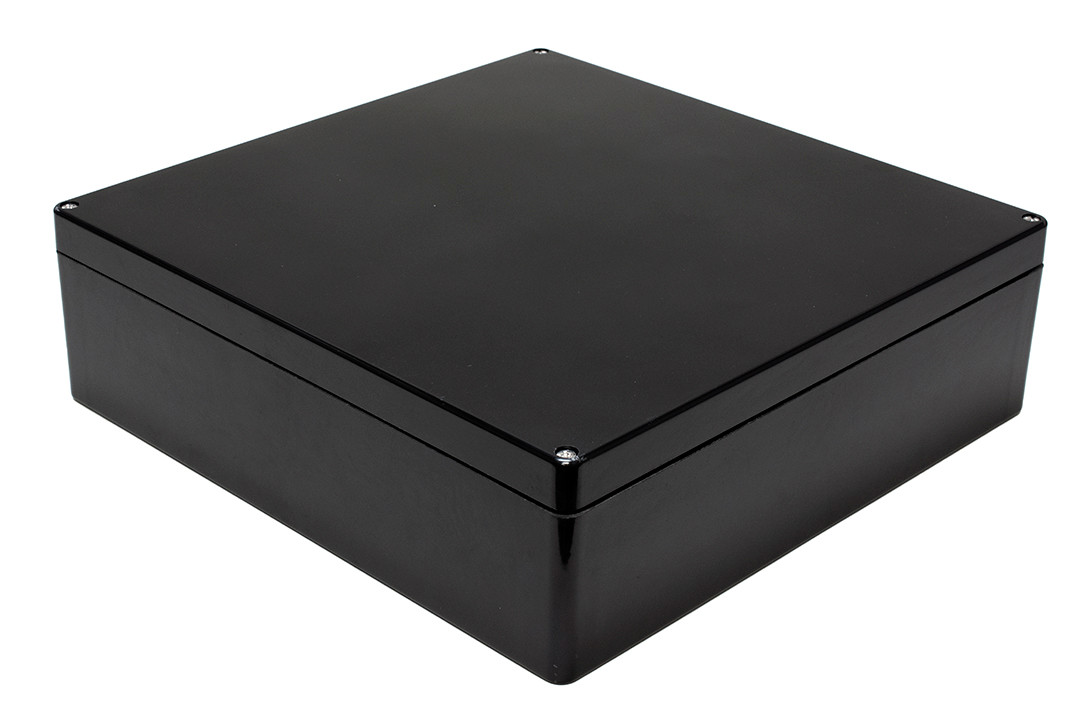

The Hammond Manufacturing 1590ZGRP253BK is a compact 15.94 x 15.75 x 4.76 in NEMA 4, 4X water-tight fiberglass box, made from fiberglass reinforced polyester, finished in Black and fitted with a removable 16 gauge inner panel.
| Category | |
| Manufacturer | Hammond |
| Material | Fiberglass Reinforced Polyester |
| Construction | Molded from black glass reinforced polyester . Smooth finish. Heavy duty thick wall design. Includes gasketed lid with two piece tongue and groove constructi |
| Enclosure Style | Thick Wall |
| NEMA Type Rating | 4, 4X |
| IP Rating | IP66 |
| Enclosure Height | 15.75 in (400 mm) |
| Enclosure Width | 15.94 in (405 mm) |
| Enclosure Depth | 4.76 in (121 mm) |
| Size | 15.94 x 15.75 x 4.76 in (405 x 400 x 121 mm) (L x W x H) |
| Max. PC Board Length (mm) | 388 |
| Max. PC Board Width (mm) | 383 |
| Panel Included | Yes |
| Panel Gauge | 16 |
| Features | Water-Tight |
| Color | Black |
