To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Hammond |
| Manufacturer Product Number | 1447SK8HK |
| Description | Disconnect Enclosure; NEMA 4; 48x37.38x8 in; Wallmount; Single Door; Clamp |
| Datasheet | Download Datasheet |
| Drawing | Download Dimensional Drawing |

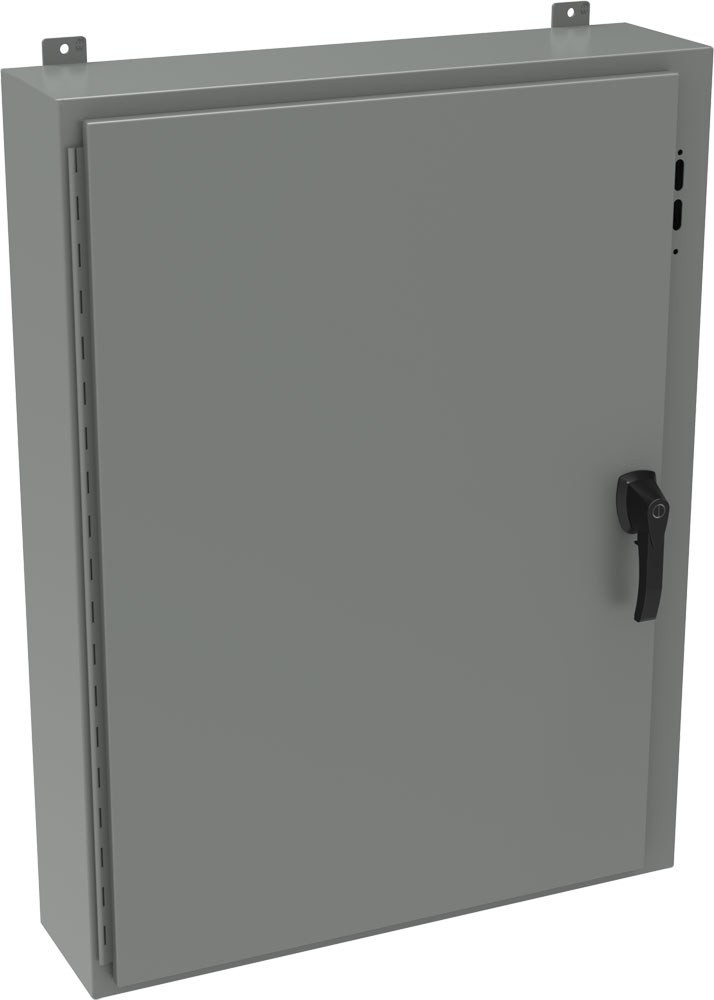

The Hammond Manufacturing 1447SK8HK is a large-format 48 x 37.38 x 8 in NEMA 4 disconnect enclosure, made from mild steel, finished in Gray and fitted with a single door and a removable 12 gauge inner panel.
The removable inner panel measures 45 x 33 in, giving 1,485 sq in (9,581 sq cm) of mounting area.
| Category | |
| Manufacturer | Hammond |
| Door Configuration | Single Door |
| Top Style | Flat |
| Mounting Style | Wallmount |
| Material | Mild Steel |
| Color | Gray |
| Enclosure Width | 37.38 in (949 mm) |
| Enclosure Height | 48.00 in (1219 mm) |
| IP Rating | IP66 |
| NEMA Type Rating | 4 |
| Standards | UL 508A Type 4, 12, and 13, CSA Type 4, 12, and 13 |
| Enclosure Depth | 8.00 in (203 mm) |
| Panel Height | 45.00 in (1143 mm) |
| Panel Width | 33.00 in (838 mm) |
| Size | 48 x 37.38 x 8 in (1219 x 949 x 203 mm) (L x W x H) |
| Latch Type | Clamp |
| Handle Style | Flange Handle |
| Panel Included | Yes |
| Panel Gauge | 12 |
| Finish | Cover and enclosure are finished in ANSI61 gray powder coat finish inside and out. Inner panel finished in white powder coat finish. |
| Complies With | NEMA Type 4, 12 and 13, IEC 60529, IP66, Appropriate components are required to maintain these standards |
