To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Hammond |
| Manufacturer Product Number | 1447SK16 |
| Description | Disconnect Enclosure; NEMA 12; 48x37.38x16 in; Wallmount; Single Door; Clamp |
| Datasheet | Download Datasheet |
| Drawing | Download Dimensional Drawing |

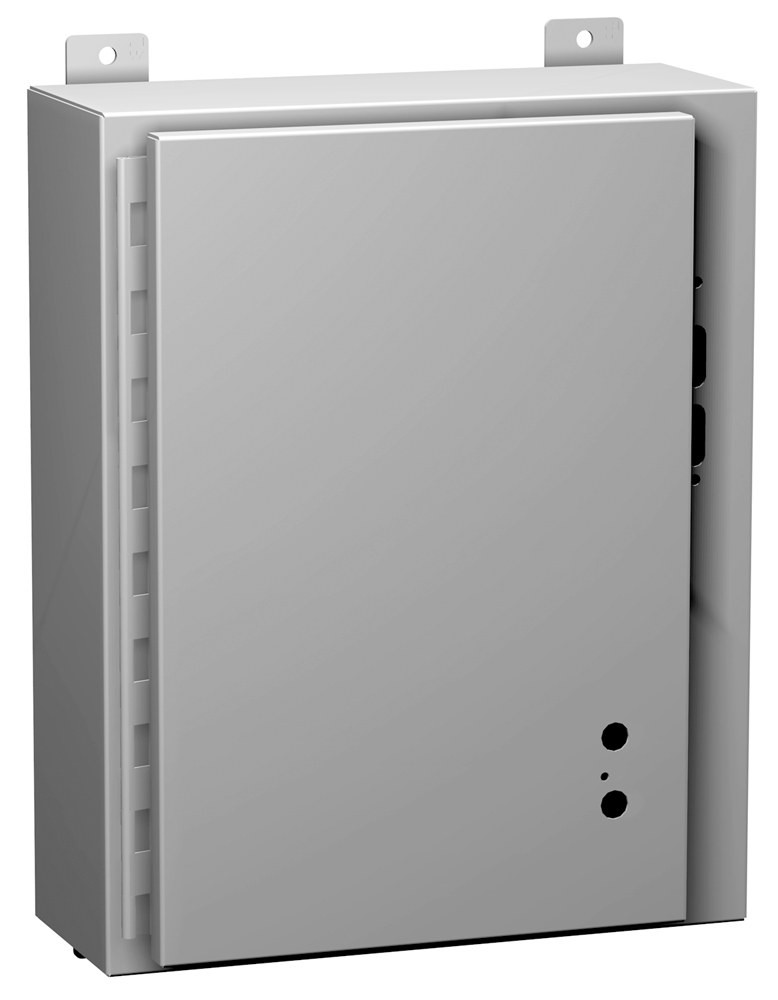

The Hammond Manufacturing 1447SK16 is a large-format 48 x 37.38 x 16 in NEMA 12 disconnect enclosure, made from mild steel, finished in Gray and fitted with a single door and a removable 12 gauge inner panel.
The removable inner panel measures 45 x 33 in, giving 1,485 sq in (9,581 sq cm) of mounting area.
| Category | |
| Manufacturer | Hammond |
| Door Configuration | Single Door |
| Top Style | Flat |
| Mounting Style | Wallmount |
| Material | Mild Steel |
| Color | Gray |
| Enclosure Width | 37.38 in (949 mm) |
| Enclosure Height | 48.00 in (1219 mm) |
| IP Rating | IP54 |
| NEMA Type Rating | 12 |
| Standards | UL 508A Type 12, 13, CSA Type 12, 13 |
| Enclosure Depth | 16.00 in (406 mm) |
| Panel Height | 45.00 in (1143 mm) |
| Panel Width | 33.00 in (838 mm) |
| Size | 48 x 37.38 x 16 in (1219 x 949 x 406 mm) (L x W x H) |
| Latch Type | Clamp |
| Handle Style | Door Handle |
| Panel Included | Yes |
| Panel Gauge | 12 |
| Finish | Cover and enclosure are finished in ANSI61 gray powder coat finish inside and out. Inner panel finished in white powder coat finish. Disconnects, operating mechanisms and door hardware are not provided with the enclosure, and must be ordered separate |
| Complies With | NEMA Type 12 and 13, IEC 60529, IP54, Appropriate components are required to maintain these standards |
