To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Hammond |
| Manufacturer Product Number | 1447SC10 |
| Description | Disconnect Enclosure; NEMA 12; 25.38x24x10 in; Wallmount; Single Door; Clamp |
| Datasheet | Download Datasheet |
| Drawing | Download Dimensional Drawing |

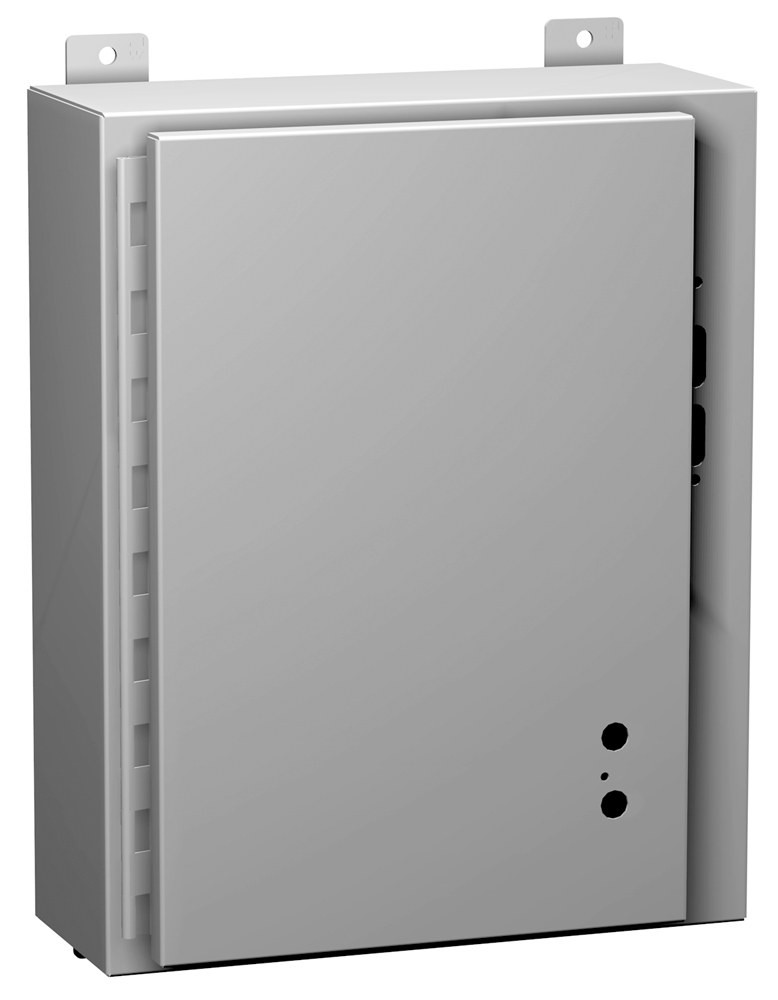

The Hammond Manufacturing 1447SC10 is a mid-size 25.38 x 24 x 10 in NEMA 12 disconnect enclosure, made from mild steel, finished in Gray and fitted with a single door and a removable 12 gauge inner panel.
The removable inner panel measures 21 x 21 in, giving 441 sq in (2,845 sq cm) of mounting area.
| Category | |
| Manufacturer | Hammond |
| Door Configuration | Single Door |
| Top Style | Flat |
| Mounting Style | Wallmount |
| Material | Mild Steel |
| Color | Gray |
| Enclosure Width | 25.38 in (645 mm) |
| Enclosure Height | 24.00 in (610 mm) |
| IP Rating | IP54 |
| NEMA Type Rating | 12 |
| Standards | UL 508A Type 12, 13, CSA Type 12, 13 |
| Enclosure Depth | 10.00 in (254 mm) |
| Panel Height | 21.00 in (533 mm) |
| Panel Width | 21.00 in (533 mm) |
| Size | 25.38 x 24 x 10 in (645 x 610 x 254 mm) (L x W x H) |
| Latch Type | Clamp |
| Handle Style | Door Handle |
| Panel Included | Yes |
| Panel Gauge | 12 |
| Finish | Cover and enclosure are finished in ANSI61 gray powder coat finish inside and out. Inner panel finished in white powder coat finish. Disconnects, operating mechanisms and door hardware are not provided with the enclosure, and must be ordered separate |
| Complies With | NEMA Type 12 and 13, IEC 60529, IP54, Appropriate components are required to maintain these standards |
