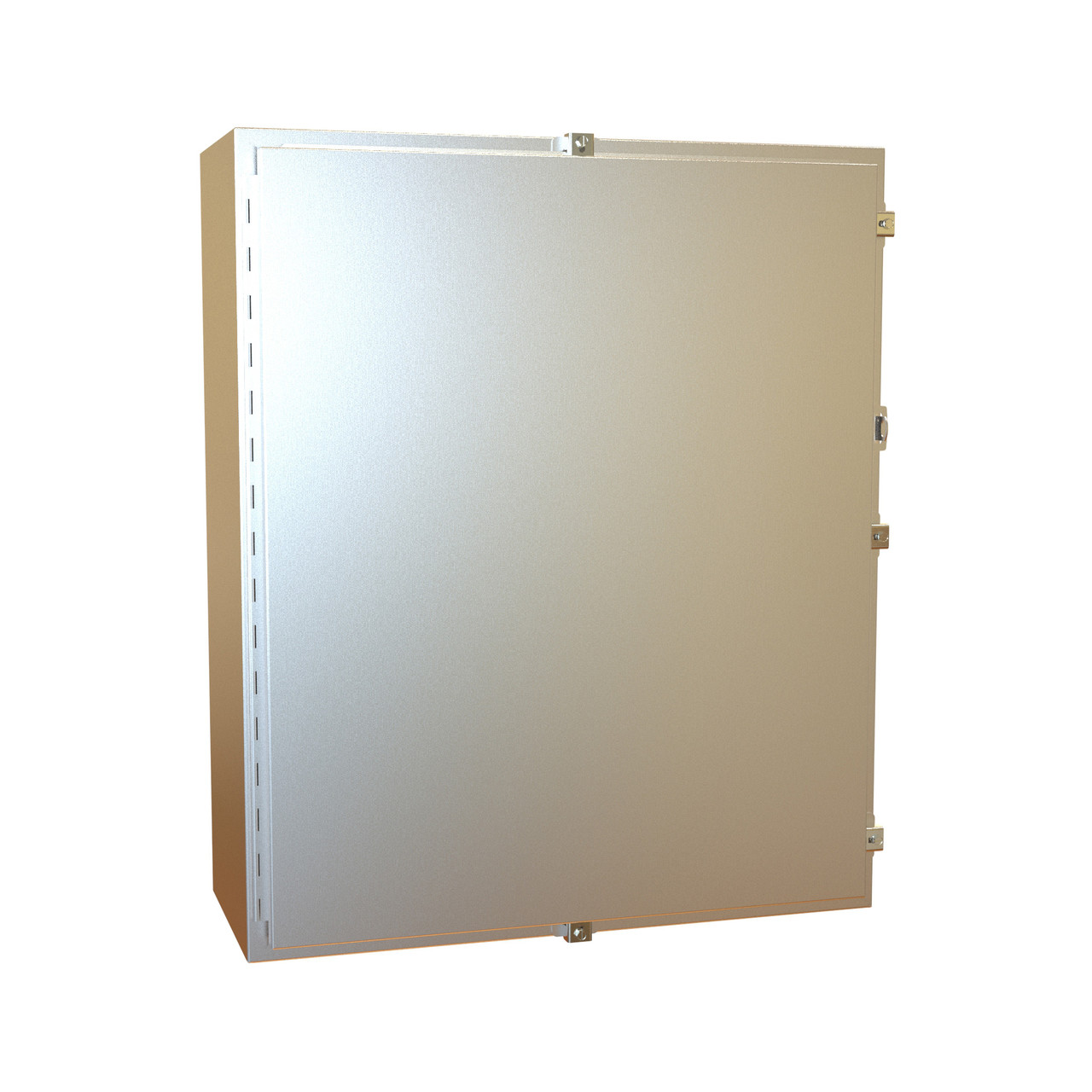

Hammond 1418N4SSM12
| Manufacturer |
Hammond |
| Manufacturer Product Number |
1418N4SSM12 |
Product Description
Wallmount Box • Size / Dimension: 36.000" L x 30.000" W (914.40mm x 762.00mm) • Height: 12.000" (304.80mm) • Design: Hinged Door, Lid • Material: Metal, Stainless Steel • Color: Natural • Features: Interior Panels, Mounting Flange
|
|
| Product Information | | Resources |
Product Attribute
| Attribute Value
|
| Container Type | Box |
| Size / Dimension | 36.000" L x 30.000" W (914.40mm x 762.00mm) |
| Height | 12.000" (304.80mm) |
| Area (L x W) | 1080in² (6968cm²) |
| Design | Hinged Door, Lid |
| Material | Metal, Stainless Steel |
| Color | Natural |
| Thickness | 14 Gauge |
| Features | Interior Panels, Mounting Flange |
| Ratings | IP66, JIC EGP-1-1967, NEMA 3R,4,4X,12,13, UL-508 |
| Type 4X Stainless Steel Wallmount Enclosure 1418 N4 SS Series |
| Series Description: |
- Formed 14 gauge 304 or 316 stainless steel.
- Smooth, continuously welded seams without knockouts, cutouts or holes.
- Door stiffeners are provided in the larger enclosures for extra rigidity.
- Welded brackets provide for enclosure mounting.
- Formed lip on door and enclosure excludes flowing liquids and contaminants.
- Stainless steel continuous hinge on door may be removed by pulling the stainless steel hinge pin.
- Door is secured with easily operated stainless steel clamps.
- Provision for padlocking.
- Seamless poured-in place gasket.
- A removable 12 gauge inner panel is included.
- Collar studs are provided for mountÂing inner panels.
- A bonding stud is provided on the door and a grounding stud is provided in the enclosure.
- A literature pocket is provided for the inside of the door.
|
Other Details
N
Product Videos
Custom Field
RoHS Compliant
