To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Hammond |
| Manufacturer Product Number | 1418N4SSM10 |
| Description | Wallmount Enclosure; Stainless; 36x30x10 in; NEMA 4X; 1 Door; Natural; 14 ga body; IP66 |
| Datasheet | Download Datasheet |
| Drawing | Download Dimensional Drawing |

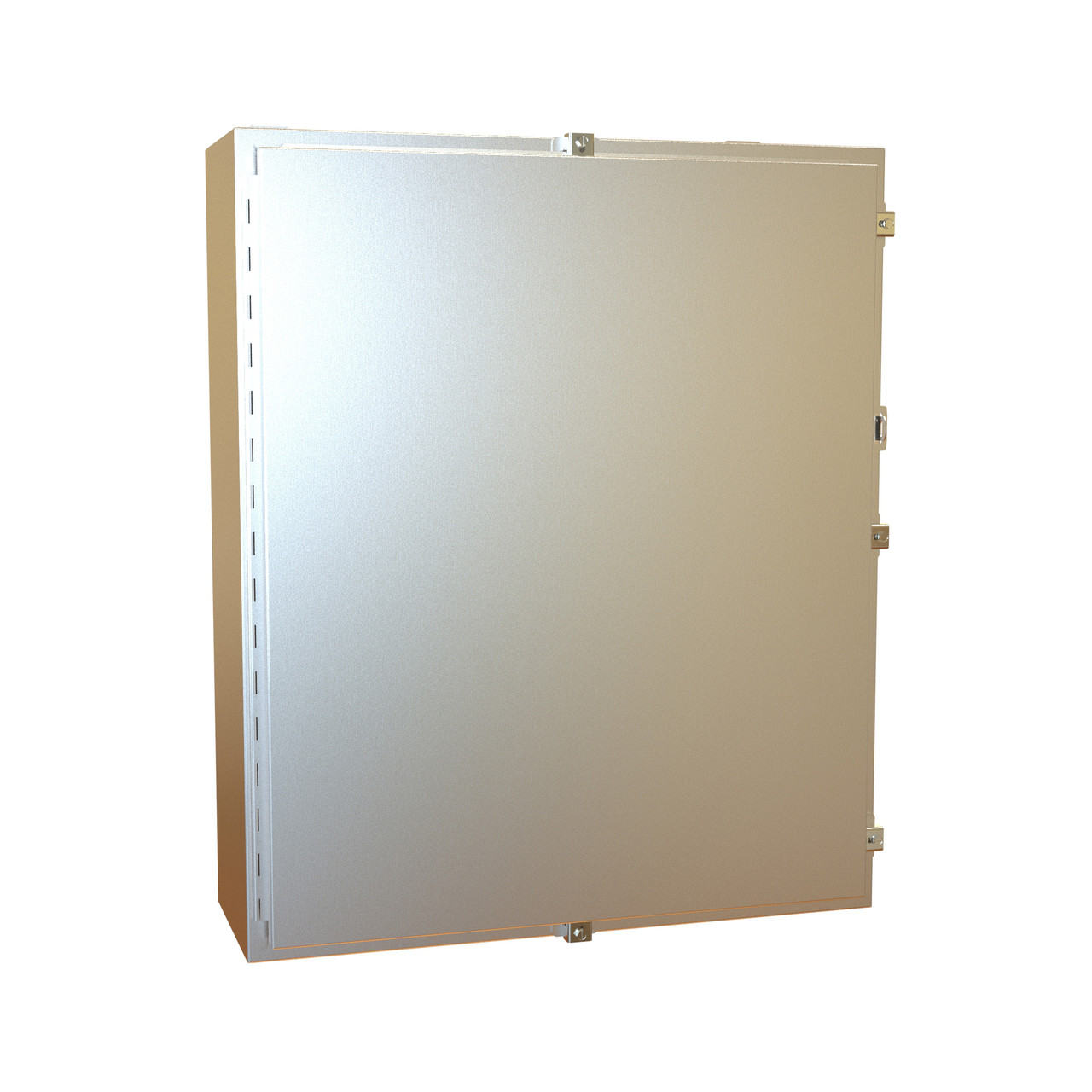

The Hammond Manufacturing 1418N4SSM10 is a mid-size 36 x 30 x 10 in NEMA 4X wallmount enclosure, formed from 14 gauge 304 stainless steel, supplied with a smooth brushed finish and fitted with a single door and a removable 12 gauge inner panel.
The removable inner panel measures 33 x 27 in, giving 891 sq in (5,748 sq cm) of mounting area.
| Category | |
| Manufacturer | Hammond |
| Material | Stainless Steel |
| Body Gauge | 14 |
| Panel Gauge | 12 |
| Stainless Grade | 304 |
| NEMA Type Rating | 4X |
| IP Rating | IP66 |
| Size | 36 x 30 x 10 in (914 x 762 x 254 mm) (L x W x H) |
| Face Area | 1080 in2 (6,965 cm2) |
| Panel Height | 33.00 in (838 mm) |
| Panel Width | 27.00 in (686 mm) |
| Panel Included | Yes |
| Door Configuration | Single Door |
| Top Style | Flat |
| Window | No |
| Finish | Cover and enclosure are natural stainless steel with a smooth brushed finish. Removable inner panel is finished in white powder coating. |
| Color | Natural |
| Standards | UL 508A Type 3R, 4, 4X, and 12, CSA Type 3R, 4, 4X, and 12 |
| Complies With | NEMA Type 3R, 4, 4X, 12 and 13, IEC 60529, IP66 |
