To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Hammond |
| Manufacturer Product Number | 1414PHK8 |
| Description | Steel Box; NEMA 12; 12x10x8 in; 305x254x203 mm; Hinged; Gray |
| Datasheet | Download Datasheet |
| Drawing | Download Dimensional Drawing |

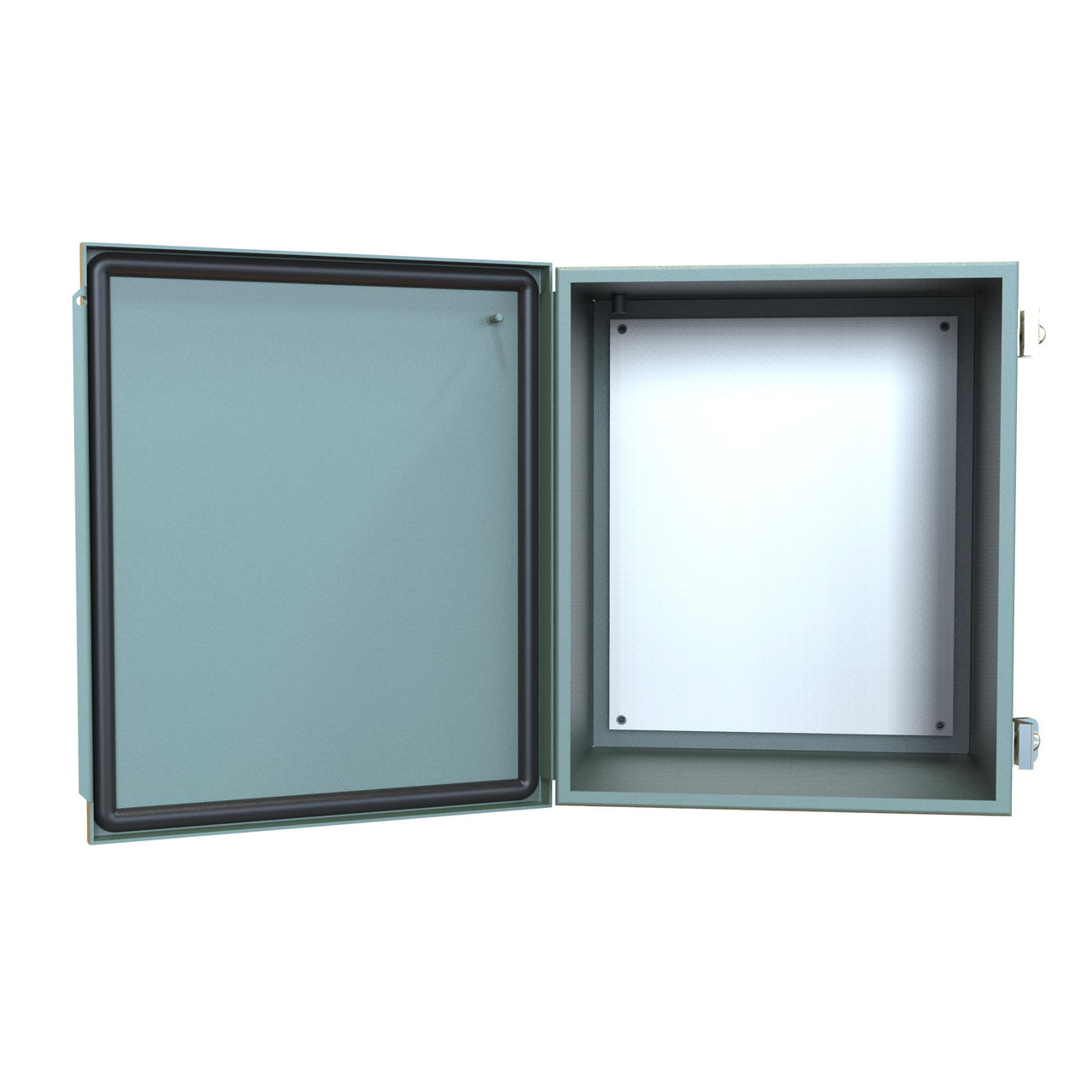

The Hammond Manufacturing 1414PHK8 is a compact 12 x 10 x 8 in NEMA 12 steel box, formed from 14 gauge mild steel, finished in ANSI 61 Gray and fitted with a removable 14 gauge inner panel.
The removable inner panel measures 10.75 x 8.88 in, giving 95 sq in (616 sq cm) of mounting area.
| Category | |
| Manufacturer | Hammond |
| Material | Mild Steel |
| Cover Style | Hinged |
| NEMA Type Rating | 12 |
| IP Rating | IP54 |
| Enclosure Height | 12.00 in (305 mm) |
| Enclosure Width | 10.00 in (254 mm) |
| Enclosure Depth | 8.00 in (203 mm) |
| Size | 12 x 10 x 8 in (305 x 254 x 203 mm) (L x W x H) |
| Panel Height | 10.75 in (273 mm) |
| Panel Width | 8.88 in (226 mm) |
| Panel Included | Yes |
| Body Gauge | 14 |
| Panel Gauge | 14 |
| Finish | Cover and enclosure are phosphatized and finished in ANSI 61 gray recoatable powder coating. Removable inner panel is finished in white powder coating. |
| Color | ANSI 61 Gray |
| Standards | UL 508A Type 12, 13, CSA Type 12, 13 |
