To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Hammond |
| Manufacturer Product Number | 1414N4PHSSM6 |
| Description | Stainless Steel Box; NEMA 4X; 14x12x6 in; 304 or 316 |
| Datasheet | Download Datasheet |
| Drawing | Download Dimensional Drawing |

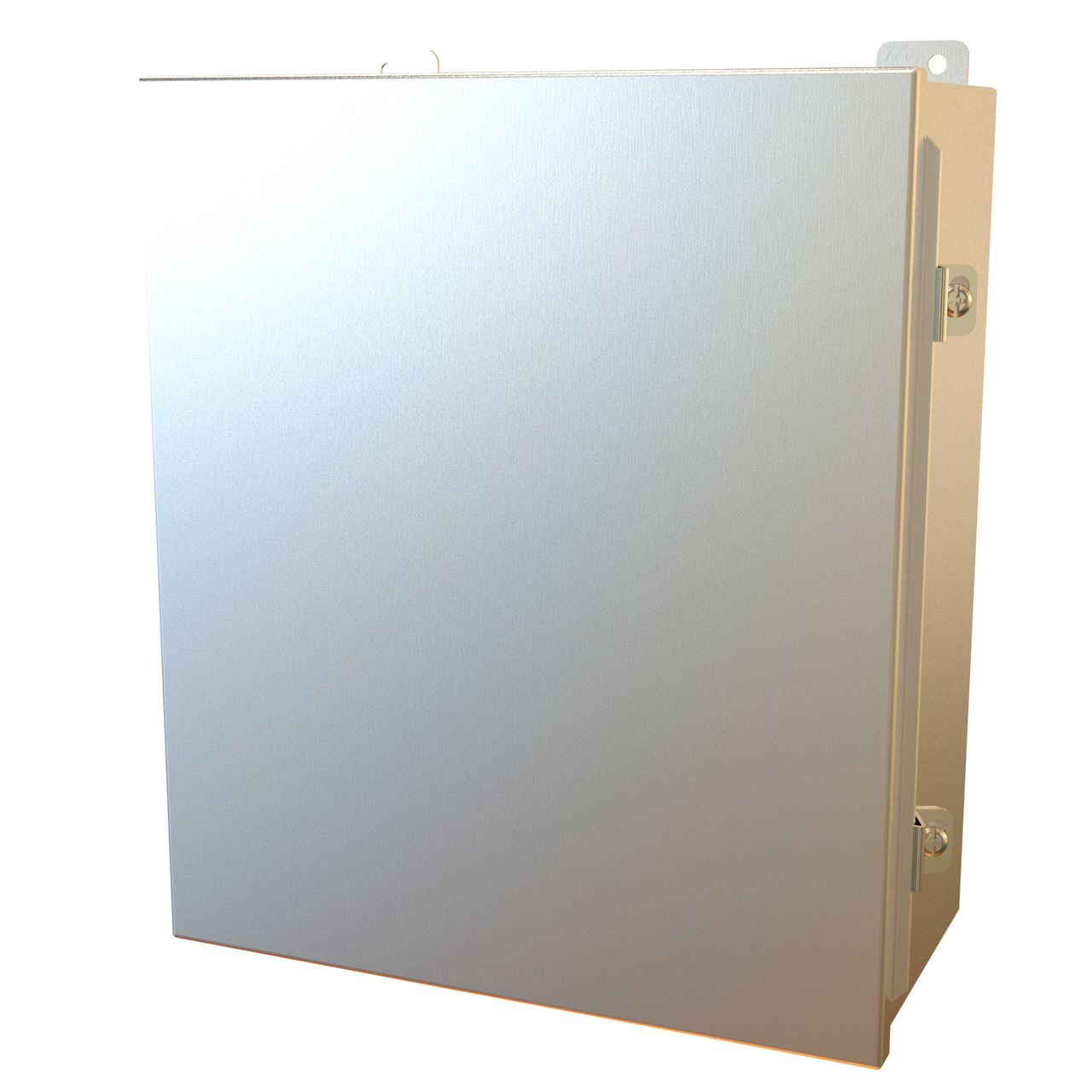

The Hammond Manufacturing 1414N4PHSSM6 is a compact 14 x 12 x 6 in NEMA 4X stainless steel box, formed from 14 gauge stainless steel and supplied with a smooth brushed finish.
The removable inner panel measures 12.75 x 10.88 in, giving 139 sq in (895 sq cm) of mounting area.
| Category | |
| Manufacturer | Hammond |
| Material | Stainless Steel |
| Cover Style | Hinged |
| Stainless Grade | 304 or 316 |
| NEMA Type Rating | 4X |
| IP Rating | IP66 |
| Enclosure Height | 14.00 in (356 mm) |
| Enclosure Width | 12.00 in (305 mm) |
| Enclosure Depth | 6.00 in (152 mm) |
| Size | 14 x 12 x 6 in (356 x 305 x 152 mm) (L x W x H) |
| Panel Height | 12.75 in (324 mm) |
| Panel Width | 10.88 in (276 mm) |
| Panel Included | Yes |
| Body Gauge | 14 |
| Panel Gauge | 14 |
| Finish | Cover and enclosure are natural stainless steel with a smooth brushed finish. Removable inner panel is finished in white powder coating. |
| Color | Natural |
| Standards | UL 508A Type 3R, 4, 4X, 12 and 13, CSA Type 3R, 4, 4X, 12 and 13 |
