Hammond 1414N4PHS16M8
| Manufacturer |
Hammond |
| Manufacturer Product Number |
1414N4PHS16M8 |
Product Description
| Product Information | | Resources |
Product Attribute
| Attribute Value
|
| Container Type | Junction Box |
| Size / Dimension | 12.310" L x 8.200" W (312.67mm x 208.28mm) |
| Height | 14.240" (361.70mm) |
| Area (L x W) | 101in² (652cm²) |
| Design | Cover Included |
| Material | Metal, Stainless Steel |
| Color | Natural |
| Ratings | IP66, NEMA 3R,4,4X,12,13, UL-508A |

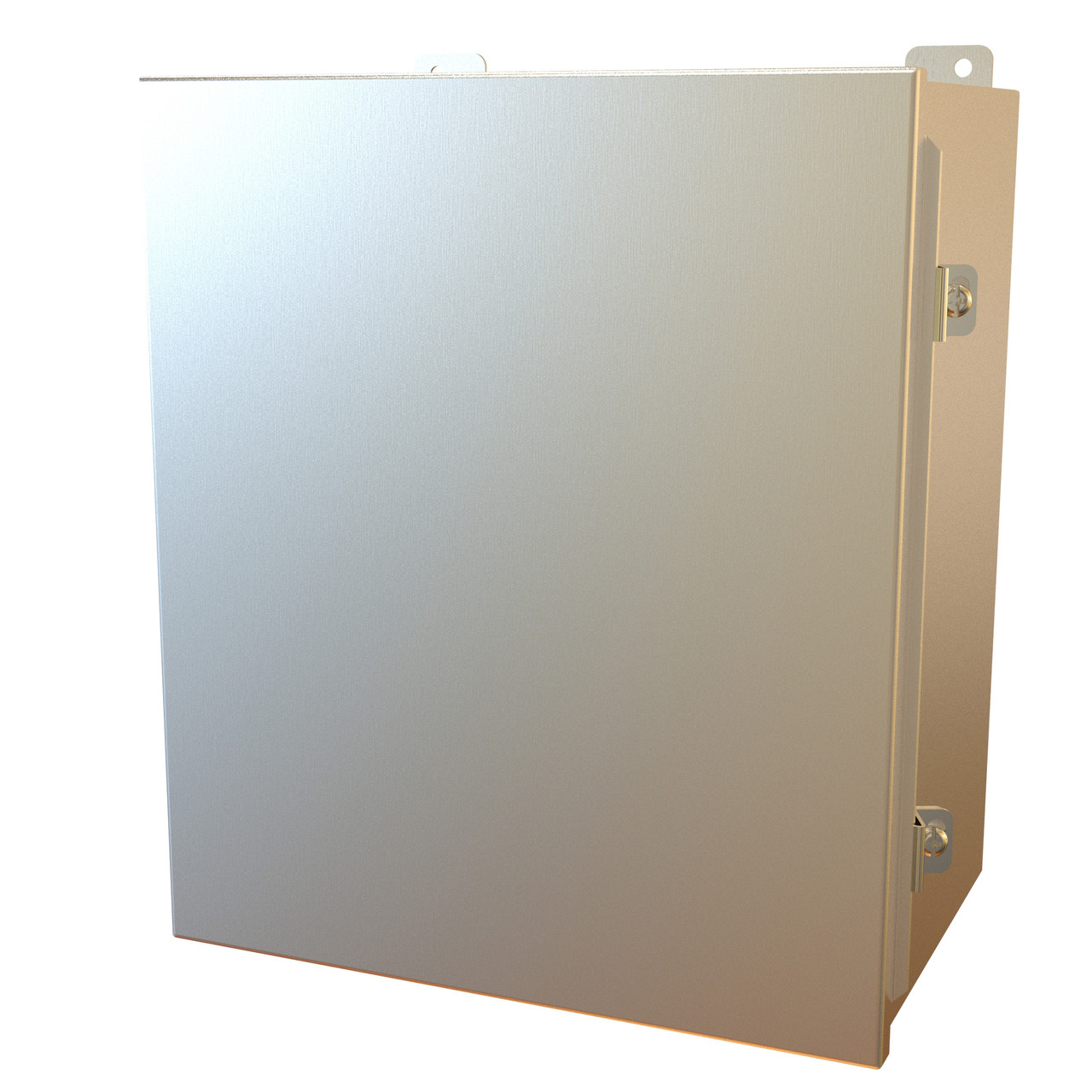

| Type 4X Stainless Steel Junction Box 1414 N4 PH SS Series |
| Series Description: |
- Formed from 14 gauge 304 or 316 stainless steel.
- Smooth, continuously welded seams.
- Welded brackets provide for enclosure mounting.
- Continuous stainless steel hinged cover is secured with stainless steel clamps and screws.
- Seamless poured-in place gasket.
- All models include a removable 14 gauge inner panel.
- Tapped studs are provided for mounting inner panels.
- A bonding stud is provided on the door and a grounding stud is provided in the enclosure.
|
Other Details
N
Product Videos
Custom Field
RoHS Compliant
