To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Hammond |
| Manufacturer Product Number | 1414N4PHG |
| Description | Steel Box; NEMA 4; 8x6x3.5 in; 203x152x89 mm; Hinged; Gray |
| Datasheet | Download Datasheet |
| Drawing | Download Dimensional Drawing |

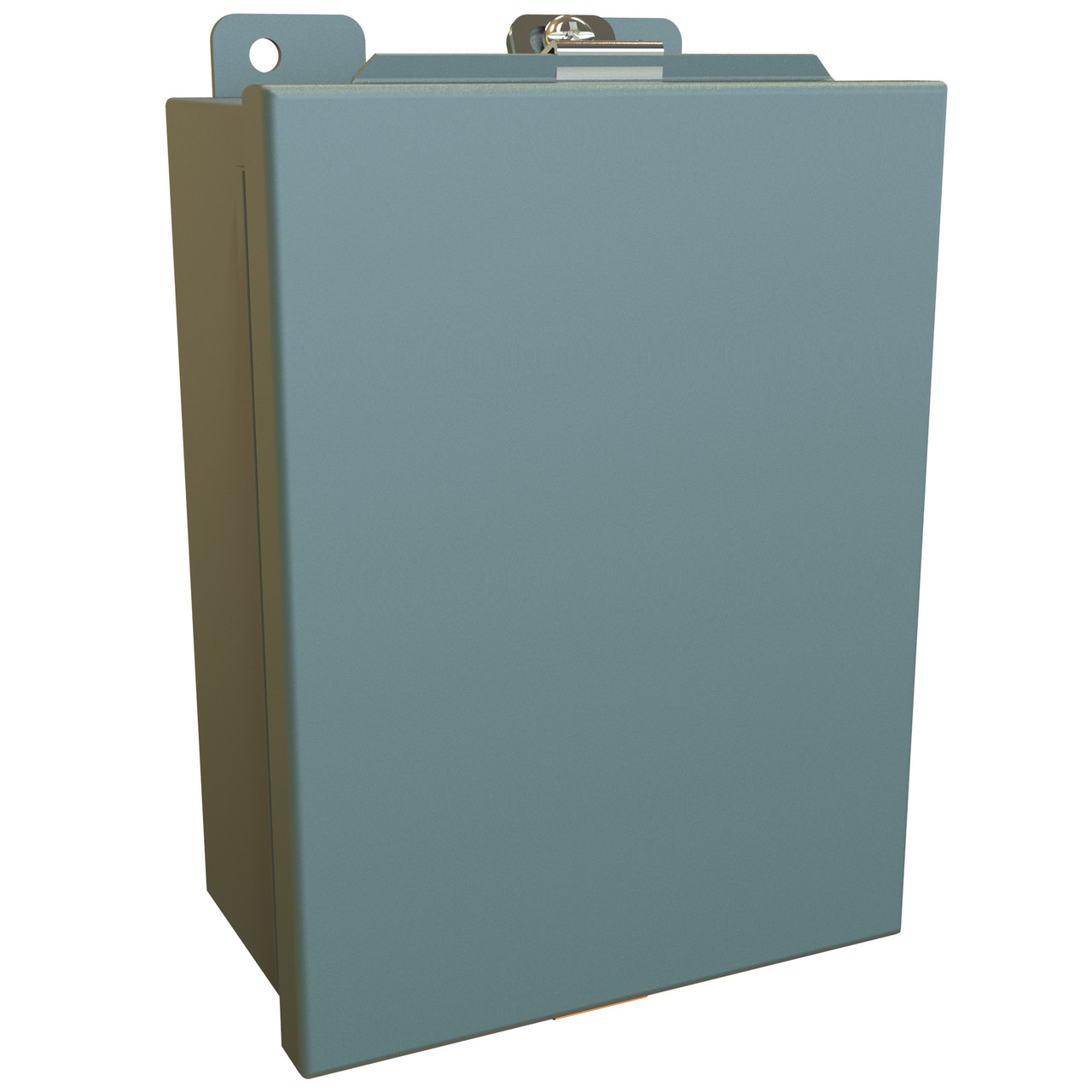

The Hammond Manufacturing 1414N4PHG is a compact 8 x 6 x 3.5 in NEMA 4 steel box, formed from 14 gauge mild steel, finished in ANSI 61 Gray and fitted with a removable 14 gauge inner panel.
The removable inner panel measures 6.75 x 4.88 in, giving 33 sq in (213 sq cm) of mounting area.
| Category | |
| Manufacturer | Hammond |
| Material | Mild Steel |
| Cover Style | Hinged |
| NEMA Type Rating | 4 |
| IP Rating | IP66 |
| Enclosure Height | 8.00 in (203 mm) |
| Enclosure Width | 6.00 in (152 mm) |
| Enclosure Depth | 3.50 in (89 mm) |
| Size | 8 x 6 x 3.5 in (203 x 152 x 89 mm) (L x W x H) |
| Panel Height | 6.75 in (171 mm) |
| Panel Width | 4.88 in (124 mm) |
| Panel Included | Yes |
| Body Gauge | 14 |
| Panel Gauge | 14 |
| Finish | Cover and enclosure are phosphatized, finished in recoatable smooth ANSI 61 gray powder coating. Removable inner panel is finished in white powder coating. |
| Color | ANSI 61 Gray |
| Standards | UL 508A Type 3R, 4, 12 and 13, CSA Type 3R, 4, 12 and 13 |
