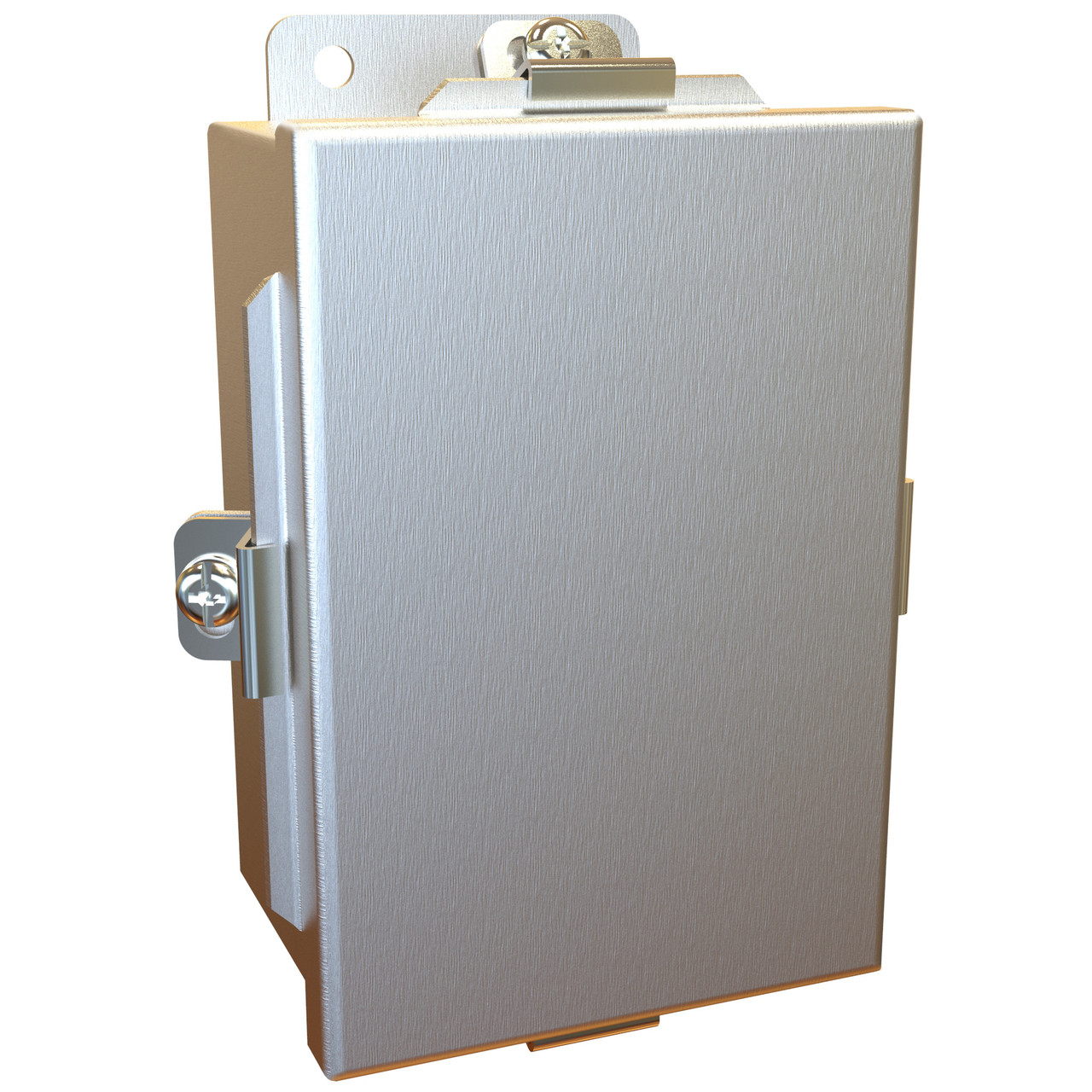

Hammond 1414N4ALC
| Manufacturer |
Hammond |
| Manufacturer Product Number |
1414N4ALC |
Product Description
Box • Container Type: Box • Size / Dimension: 6.000" L x 4.000" W (152.40mm x 101.60mm)
|
|
| Product Information | | Resources |
Product Attribute
| Attribute Value
|
| Container Type | Box |
| Size / Dimension | 6.000" L x 4.000" W (152.40mm x 101.60mm) |
| Height | 3.000" (76.20mm) |
| Area (L x W) | 24.0in² (155cm²) |
| Design | Cover Included |
| Material | Metal, Aluminum |
| Color | Natural |
| Thickness | 0.060" (1.52mm) |
| Features | Interior Panels |
| Ratings | IP66, NEMA 4,12,13, UL-508 |
| Type 4X Aluminum Junction Box 1414 N4 AL Series |
| Series Description: |
- Formed from 0.08" Type 5052 H-32 aluminum.
- Smooth, continuously welded seams without knockouts, cutouts or holes.
- Welded brackets provide for enclosure mounting.
- Cover is secured with easily operated aluminum clamps.
- Seamless poured-in place gasket.
- All models larger than 4" x 4" include a removable 14 gauge inner panel.
- Tapped studs are provided for mounting inner panels.
- A bonding stud is provided on the door and a grounding stud is provided in the enclosure.
|
Other Details
N
Product Videos
Custom Field
RoHS Compliant
