To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Finder |
| Manufacturer Product Number | 88.12.0.230.0002 |
| Description | Time Delay Relay; 0.05 s...100 h; Multi-Function; 2C DPDT; 8 A |
| Datasheet | Download Datasheet |

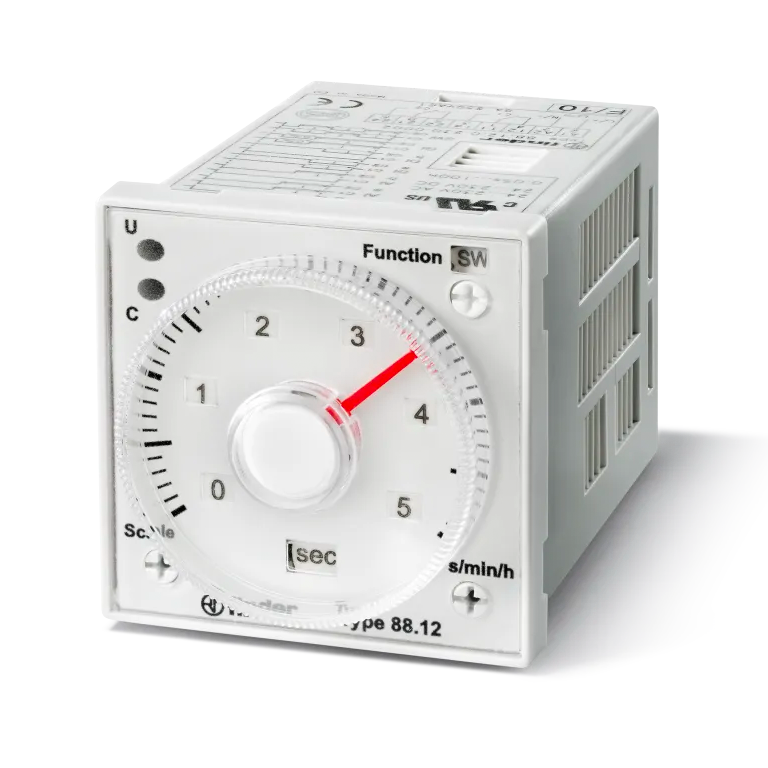

The Finder 88.12.0.230.0002 is a time delay relay with 2C DPDT output and rated 8 A, driven by a 24 to 230 V AC/DC input.
It is adjustable from 0.05 s to 100 h, over four selectable scales and set by front-face selectors for the function, time scale and unit of time, with a dial for the time value.
It offers AIa on-delay and DIa interval with 2 timed contacts, AIb on-delay and DIb interval with 1 timed + 1 instantaneous contact, GI pulse delayed with a fixed 0.5 s reset, SW symmetrical flasher starting pulse on.
It has Socketable mounting and Plug In, 8 Pin (Octal) terminals.
| Category | |
| Manufacturer | Finder |
