Product Description
Description: Time Delay Relay • Star Delta • Mounting Type: DIN Rail • Circuit: 2A DPST-NO • Delay Time: 0.1 Sec ~ 20 Min • Contact Rating @ Voltage: 6 A • Voltage - Supply: 24~240VAC/DC • Termination Style: Screw Terminal • Timing Adjustment Method: Screwdriver Slot
| Product Information | | Resources |
| Manufacturer | Finder | | Product Category | Time Delay Relay | | Product Sub Category | Star Delta | | Series | 80 Series | | Model | Type 80.82 |
| | |
Product Attribute
| Attribute Value
|
| Mounting Type | DIN Rail |
| Circuit | 2A DPST-NO |
| Delay Time | 0.1 Sec ~ 20 Min |
| Contact Rating @ Voltage | 6 A |
| Voltage - Supply | 24~240VAC/DC |
| Termination Style | Screw Terminal |
| Timing Adjustment Method | Screwdriver Slot |
| Timing Initiate Method | Input Voltage |

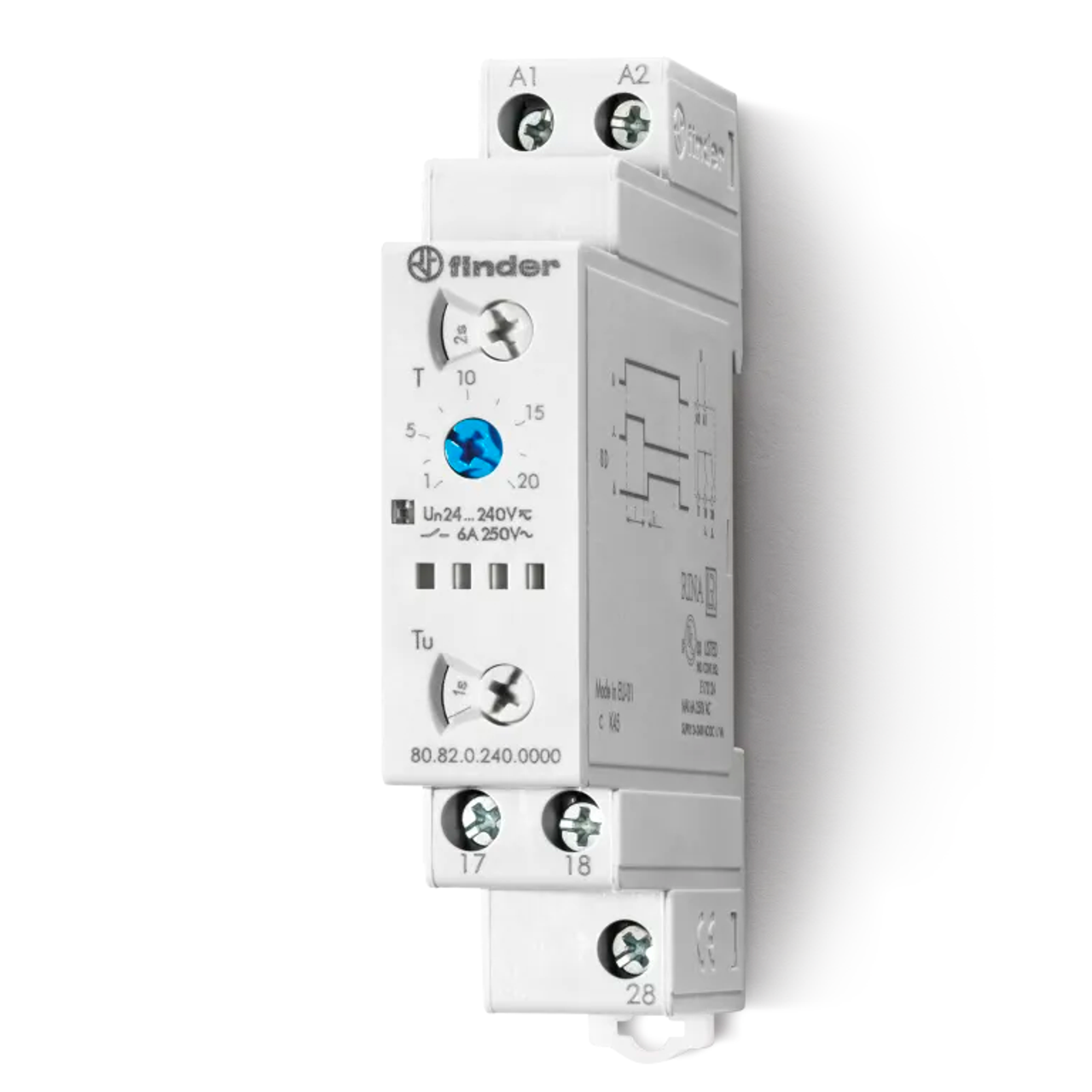

| TYPE 80.82 - MODULAR TIMER 6A |
| Series Description: Type 80.82 Star-Delta modular timer, multi-voltage. |
- 17.5 mm wide
- Rotary range selector and timing trimmer
- Four S-D time scales from 0.1 s to 20 m
- Transfer time can be regulated (0.05Â…1)s
- High input/output isolation
- 35 mm rail (EN 60715) mount
|
RoHS Compliant
