Product Description
Description: Time Delay Relay • Multifunction • Mounting Type: DIN Rail • Contact Configuration: 1C SPDT • Delay Time: 0.1 Sec~6 Hrs • Contact Rating @ Voltage: 6A • Timing Adjustment Method: Screwdriver Slot • Terminal: box clamp
| Product Information | | Resources |
| Manufacturer | Finder | | Product Category | Time Delay Relay | | Product Sub Category | Multifunction | | Series | 39 Series | | Model | Type 39.81 |
| | |
Product Attribute
| Attribute Value
|
| Mounting Type | DIN Rail |
| Relay Type | Mechanical Relay |
| Function | Programmable (Multi-Function) |
| Contact Configuration | 1C SPDT |
| Delay Time | 0.1 Sec~6 Hrs |
| Contact Rating @ Voltage | 6A |
| Voltage - Supply | 12VAC/DC |
| Termination Style | Screw Terminal |
| Timing Adjustment Method | Screwdriver Slot |
| Timing Initiate Method | Input Voltage |
| Terminal | box clamp |

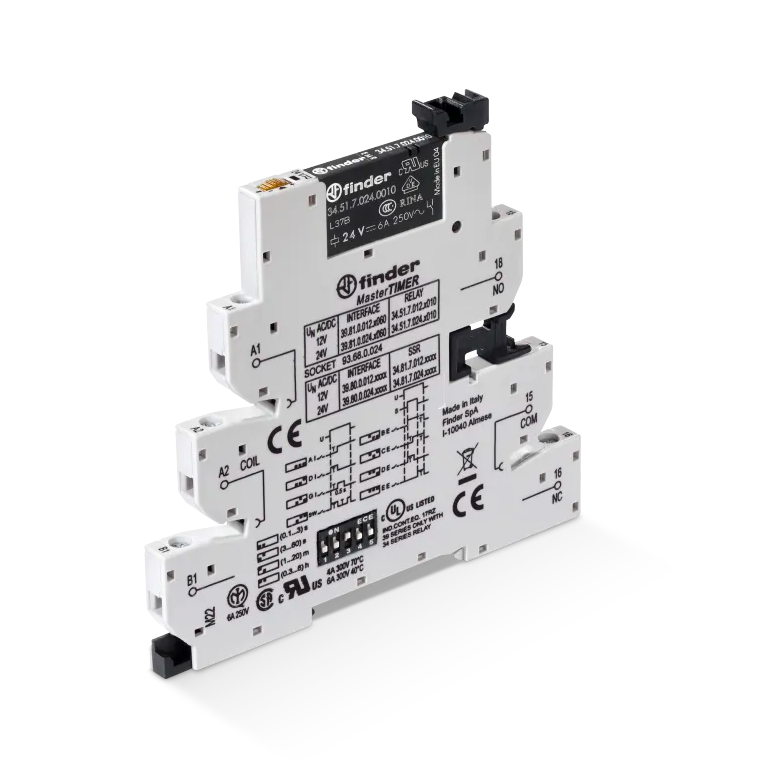

| TYPE 39.81 - MASTERTIMER - EMR - RELAY INTERFACE MODULE 6A |
| Series Description: Type 39.81 MasterTIMER is a slim timed Electromechanical interface module, 6.2 mm wide, ideal for space-saving timing solutions in panels. Timer adjustment via top mounted rotary knob, accessible after assembly. |
- Control signal terminal
- DIP-switch for selection of 4 time scales and 8 functions
- Common connection possible with optional jumper links (terminals A1, A2 and 15)
- UL Listing (certain relay/socket combinations)
- Screw terminals
|
