To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Finder |
| Manufacturer Product Number | 78.Y3.1.440.2414 |
| Description | Switching Power Supply; 24V DC; 480 W; 20 A (26 A boost for 3 s) |
| Datasheet | Download Datasheet |

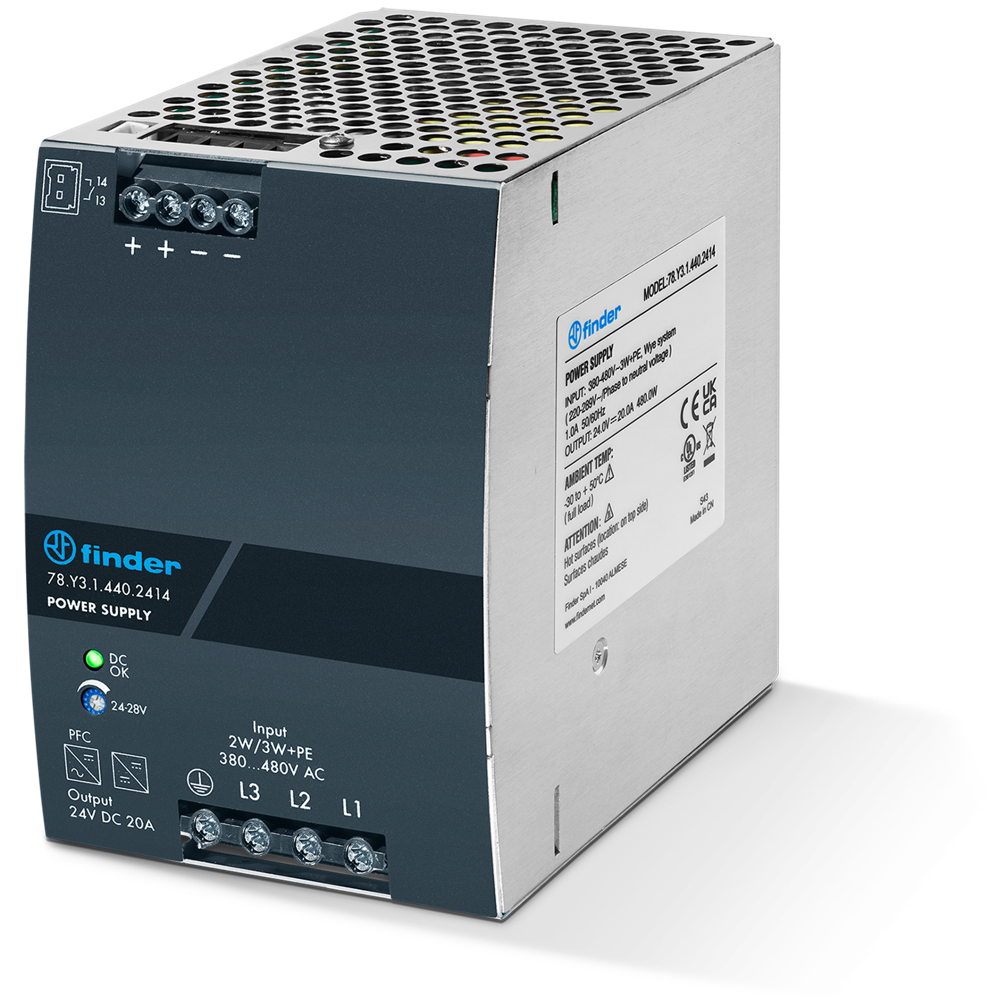

The Finder 78.Y3.1.440.2414 is a 24V DC 480 W switching power supply, delivering 20 A (26 A boost for 3 s) from a 380 to 480 V AC or 500 to 780 V DC input.
It takes three phase (two phase possible) input, adjusts from 24 to 28 V, has active, double stage power factor correction and signals through a DC OK contact.
It is 92% efficient at 400 V AC, delivers 26 A for 5 ms peak and has hiccup short-circuit protection (auto-recovery), thermal shutdown with auto restart and varistor overvoltage protection.
It mounts on DIN rail.
| Category | |
| Manufacturer | Finder |
| Model | 78.Y3 |
| Output Voltage | 24V DC |
| Output Current | 20 A (26 A boost for 3 s) |
| Output Power (W) | 480 |
| Output Voltage Adjustment | 24...28 V |
| Input Phases | Three phase (two phase possible) |
| Power Factor Correction | Active, double stage |
| Auxiliary Contact | DC OK |
| Input Voltage | (380...480)V AC or 500...780 V DC |
| Input Operating Range | 340...550 V AC, 480...780 V DC |
| Efficiency | 92% at 400 V AC |
| Peak Current | 26 A for 5 ms |
| Protection Features | Hiccup short-circuit protection (auto-recovery), thermal shutdown with auto restart and varistor overvoltage protection |
| Mounting Type | DIN Rail |
| Termination Style | Screw Terminal |
| Operating Temperature (°C) | -30...+70 |
| Protection Category | IP 20 |
| Approvals | CE, cULus, UKCA |
