Product Description
Description: Solid State Relay • Mounting Type: Chassis Mount • Contact Configuration: 1A SPST-NO • Output Type: AC, Zero Cross • Voltage - Input: 24VDC • Voltage - Load: 21.6 V ~ 280 V • Load Current: 50 A • Termination Style: Screw Terminal • Package / Case: Hockey Puck
| Product Information | | Resources |
| Manufacturer | Finder | | Product Category | Relay | | Product Sub Category | Solid State Relay | | Series | 77 Series | | Model | Type 77.55 |
| | |
Product Attribute
| Attribute Value
|
| Mounting Type | Chassis Mount |
| Contact Configuration | 1A SPST-NO |
| Output Type | AC, Zero Cross |
| Voltage - Input | 24VDC |
| Voltage - Load | 21.6 V ~ 280 V |
| Load Current | 50 A |
| Termination Style | Screw Terminal |
| Package / Case | Hockey Puck |

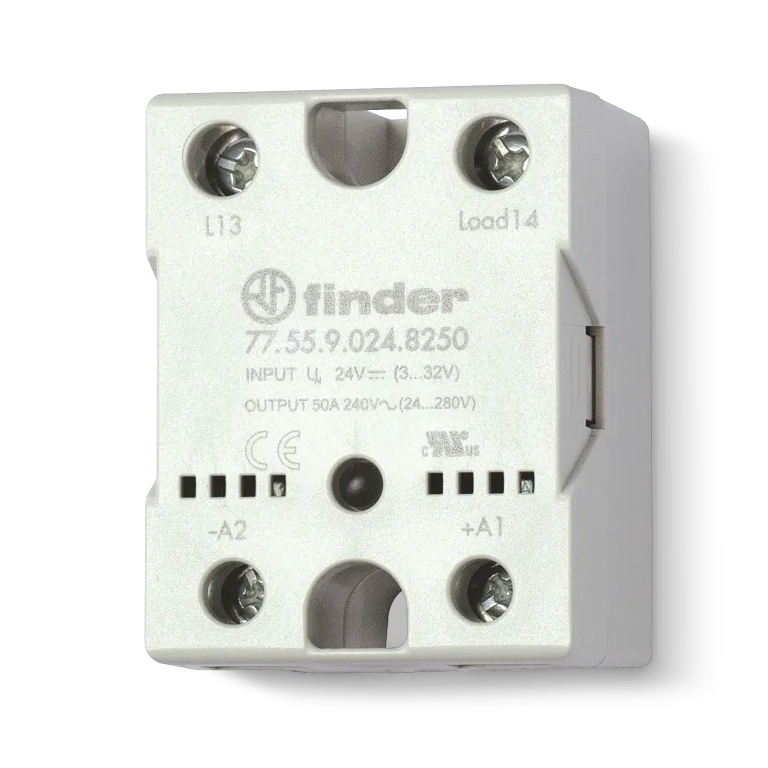

| TYPE 77.55 - HOCKEY PUCK SOLID STATE RELAY 50A |
| Series Description: Type 77.55 Solid State “Hockey Puck” relays for panel mounting, Zero-crossing switching, output: 40A/230 V AC. Designed for the following applications: – resistive loads |
- “Hockey Puck” style
- 24 to 240 V AC output
- Zero-crossing version available
- High switching speed and long electrical life
- Silent switching; spark-free and bounce-free switching
- Low control power
- Position of relay version terminals (input and output terminals on opposite sides)
- Also suitable for three-phase systems
- Mounting on heat sink with screws
|
RoHS Compliant
