Product Description
Description: Solid State Relay • Mounting Type: DIN Rail • Contact Configuration: 1A SPST-NO • Output Type: AC, Zero Cross • Voltage - Input: 230VAC • Voltage - Load: 48 V ~ 480 V • Load Current: 30 A • Termination Style: Screw Terminal • Package / Case: SSR with Integrated Heat Sink
| Product Information | | Resources |
| Manufacturer | Finder | | Product Category | Relay | | Product Sub Category | Solid State Relay | | Series | 77 Series | | Model | Type 77.31 |
| | |
Product Attribute
| Attribute Value
|
| Mounting Type | DIN Rail |
| Contact Configuration | 1A SPST-NO |
| Output Type | AC, Zero Cross |
| Voltage - Input | 230VAC |
| Voltage - Load | 48 V ~ 480 V |
| Load Current | 30 A |
| Termination Style | Screw Terminal |
| Package / Case | SSR with Integrated Heat Sink |

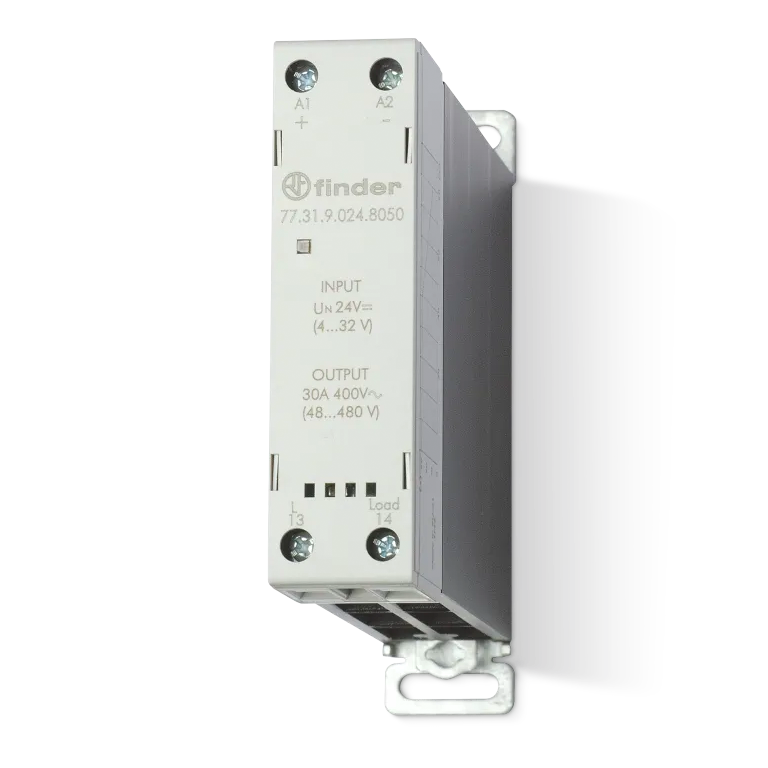

| TYPE 77.01 - MODULAR SOLID STATE RELAY 30A |
Series Description: Type 77.31 Modular solid state relays, 1NO 30 A output, Zero-crossing switching, designed for the following applications:
Lamps with high starting currents (in particular for compact low consumption lamps – CFL)
Resistive loads
Soleno |
- Width 22.5 mm, heat sink + plastic casing
- 60 to 440 V AC output (with double SCR)
- 6 kV (1.2/50 ?s) insulation between input and output
- Zero-crossing or Random switch versions available
- High switching speed and long electrical life
- Silent switching, without electric arc and rebounds
- Low absorption input circuit
- Position of relay version terminals (terminals entrance and exit on opposite sides)
- Also suitable for three-phase systems
- 35 mm rail (EN 60715) mounting
|
RoHS Compliant
