Product Description
Description: Solid State Relay • Mounting Type: Through Hole • Contact Configuration: 1A SPST-NO • Output Type: DC • Voltage - Input: 24VDC • Voltage - Load: 1.5 V ~ 24 V • Load Current: 5 A • Termination Style: PC Pin • Package / Case: Module
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Mounting Type | Through Hole |
| Contact Configuration | 1A SPST-NO |
| Output Type | DC |
| Voltage - Input | 24VDC |
| Voltage - Load | 1.5 V ~ 24 V |
| Load Current | 5 A |
| Termination Style | PC Pin |
| Package / Case | Module |
| Operating Temperature | -20°C ~ 60°C |
| Approval Agency | CE, cURus |
| Series Features |

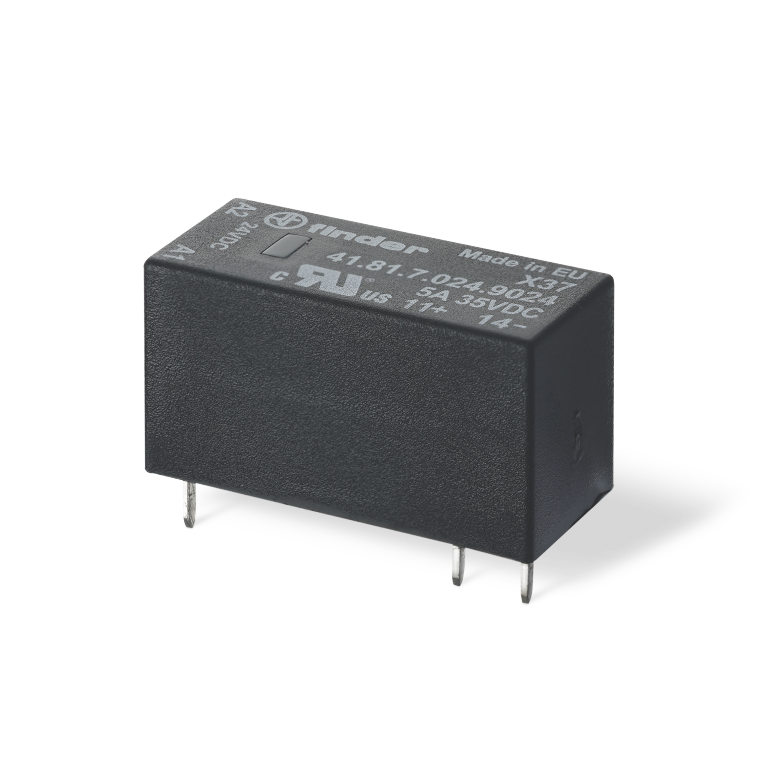

| TYPE 41.81 - LOW PROFILE PCB RELAY (SSR) |
| Series Description: Type 41.81 is a solid state relay for printed circuit mount (direct o via PCB socket) or for 35mm rail mount (via scre or screwless sockets) Its silent and it has speed switching with long electrical life. 2 different versions available: -T |
|
