Product Description
Description: Solid State Relay • Mounting Type: DIN Rail • Contact Configuration: 1A SPST-NO • Output Type: DC • Voltage - Input: 24VDC • Voltage - Load: 1.5 V ~ 33 V • Load Current: 6 A • Termination Style: Spring Terminal
| Product Information | | Resources |
| Manufacturer | Finder | | Product Category | Relay | | Product Sub Category | Solid State Relay | | Series | 39 Series | | Model | Type 39.70 |
| | |
Product Attribute
| Attribute Value
|
| Mounting Type | DIN Rail |
| Contact Configuration | 1A SPST-NO |
| Output Type | DC |
| Voltage - Input | 24VDC |
| Voltage - Load | 1.5 V ~ 33 V |
| Load Current | 6 A |
| Termination Style | Spring Terminal |
| Operating Temperature | -20°C ~ 55°C |
| Package / Case | Module |
| Approval Agency | CE, cURus, EAC |

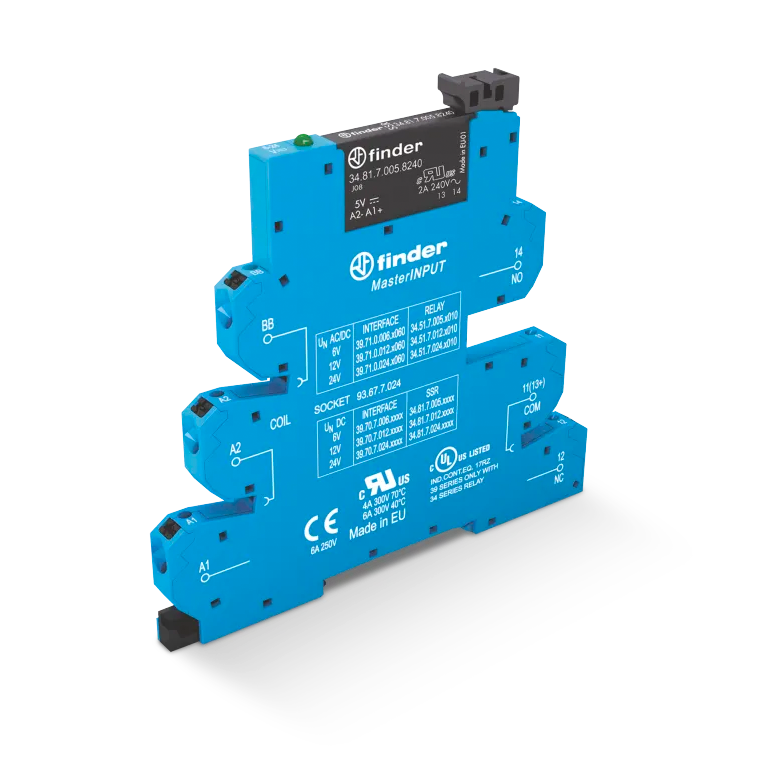

| TYPE 39.70 - MASTERINPUT - SSR - RELAY INTERFACE MODULE |
| Series Description: Each Type 39.70 MasterINPUT SSR interface module provides a terminal for all 2 (or 3) wires associated with input contacts, sensors or proximity switches. This negates any need for additional points of termination – saving on added terminal cost, time and |
- 1 Pole
- 6.2 mm wide
- Jumper link option for the quick and easy distribution of supply voltage to proximity switches and similar input devices (Bus-bar connection BB)
- UL Listing (certain relay/socket combinations)
- Push-in terminals
|
RoHS Compliant
