Product Description

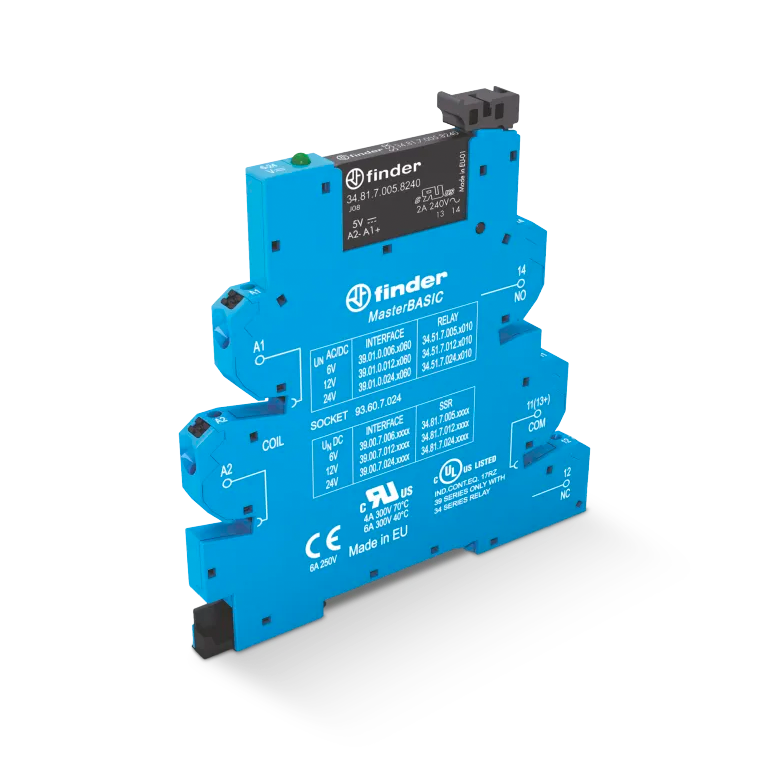

Description: Solid State Relay • Mounting Type: DIN Rail • Contact Configuration: 1A SPST-NO • Output Type: DC • Voltage - Input: 6VDC • Voltage - Load: 1.5 V ~ 33 V • Load Current: 6 A • Termination Style: Spring Terminal
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Mounting Type | DIN Rail |
| Contact Configuration | 1A SPST-NO |
| Output Type | DC |
| Voltage - Input | 6VDC |
| Voltage - Load | 1.5 V ~ 33 V |
| Load Current | 6 A |
| Termination Style | Spring Terminal |
| Operating Temperature | -20°C ~ 55°C |
| Package / Case | Module |
| Approval Agency | CE, cURus, EAC |
| Series Features |
| TYPE 39.00 - MASTERINTERFACE MASTERBASIC SSR RELAY INTERFACE MODULE |
| Series Description: Type 39.00 MasterBASIC SSR Relay Interface Module SSR, 1 contact, width 6.2 mm, solid state relay 0.1, 2 or 6 A with coils/inputs from 6 to 24 V DC, 125 V AC/DC, 230 V AC. Push-in terminals. Designed for interfacing with PLC and electronic systems. |
|
