Product Description
Description: Solid State Relays • Mounting Type: DIN Rail • Contact Configuration: 1A SPST-NO • Output Type: DC • Voltage - Input: 125VAC/DC • Voltage - Load: 1.5 V ~ 33 V • Load Current: 6 A • Termination Style: Screw Terminal • Package / Case: Module
| Product Information | | Resources |
| Manufacturer | Finder | | Product Category | Relay | | Product Sub Category | Solid State Relays | | Series | 38 Series | | Model | Type 38.81 |
| | |
Product Attribute
| Attribute Value
|
| Mounting Type | DIN Rail |
| Contact Configuration | 1A SPST-NO |
| Output Type | DC |
| Voltage - Input | 125VAC/DC |
| Voltage - Load | 1.5 V ~ 33 V |
| Load Current | 6 A |
| Termination Style | Screw Terminal |
| Package / Case | Module |

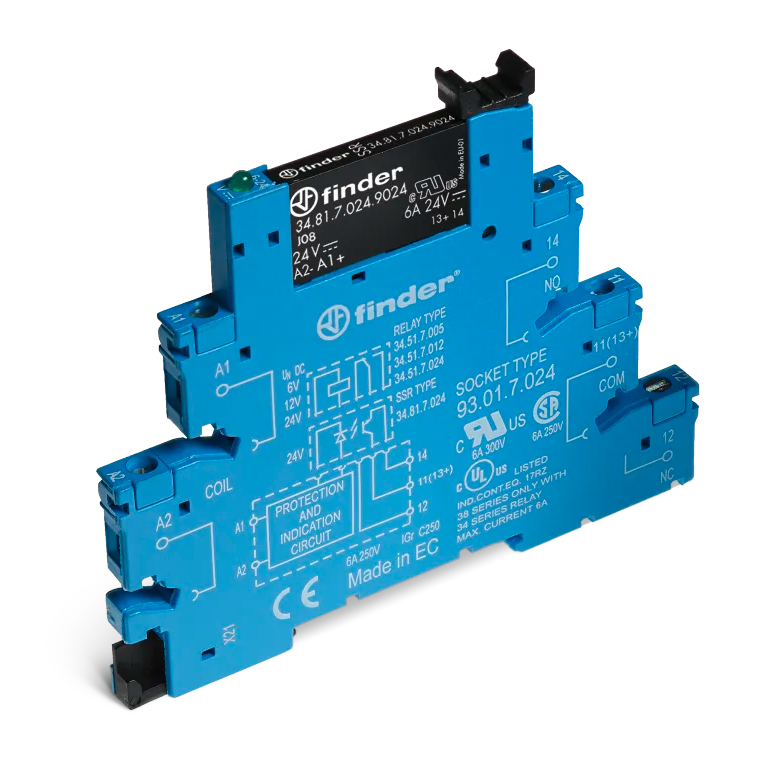

| TYPE 38.81 - RELAY INTERFACE MODULE |
| Series Description: Type 38.81 SSR interface module with screw terminals. High switching speed and long electrical life. Single pole SSR output – AC or DC switching, DC or AC/DC input, 35 mm rail mounting (EN 60715). Ideal for PLC and electronic systems. |
- Sensitive DC or AC/DC input voltage
- AC or DC output switching (1 NO)
- Supplied with integral coil indication and protection circuit
- Quick and easy ejection of relay using plastic retaining clip
- UL Listing (certain relay/socket combinations)
- 35 mm rail (EN 60715) mounting
|
RoHS Compliant
