Product Description
Description: Solid State Relay • Mounting Type: Through Hole • Contact Configuration: 1A SPST-NO • Output Type: DC • Voltage - Input: 24VDC • Voltage - Load: 1.5 V ~ 33 V • Load Current: 6 A • Termination Style: PC Pin
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Mounting Type | Through Hole |
| Contact Configuration | 1A SPST-NO |
| Output Type | DC |
| Voltage - Input | 24VDC |
| Voltage - Load | 1.5 V ~ 33 V |
| Load Current | 6 A |
| Termination Style | PC Pin |
| Operating Temperature | -20°C ~ 70°C |
| Package / Case | 4-SIP |
| Supplier Device Package | 4-SIP |
| Approval Agency | CE, cURus, EAC, UKCA |
| Series Features |

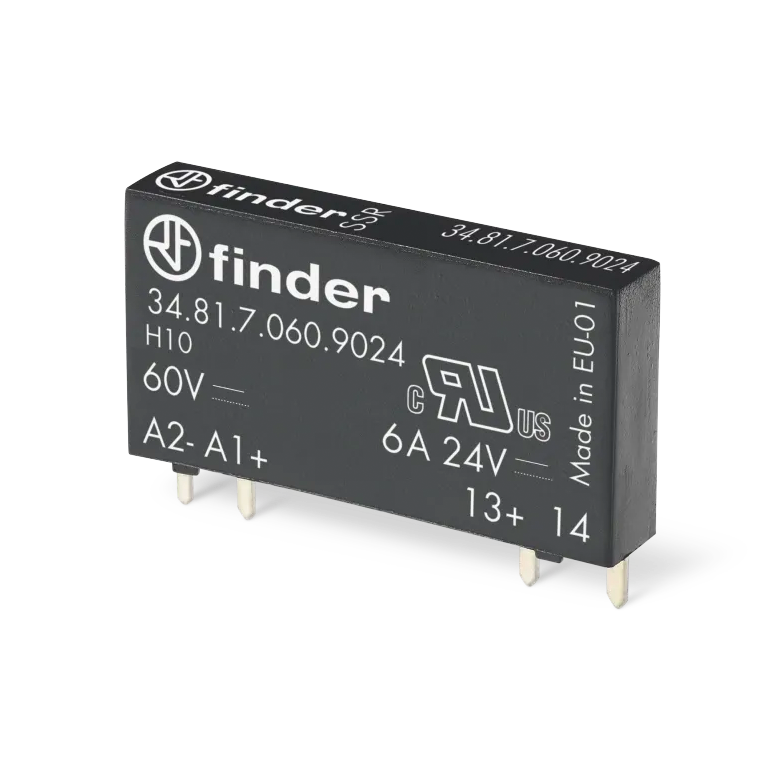

| TYPE 34.81 - ULTRA-SLIM SOLID STATE PCB RELAY (SSR) |
| Series Description: Type 34.81 is a solid state relay for printed circuit mount, direct or via PCB socket. Also for 35 mm rail mount via screw, screwless or push-in terminal sockets |
|
