To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.

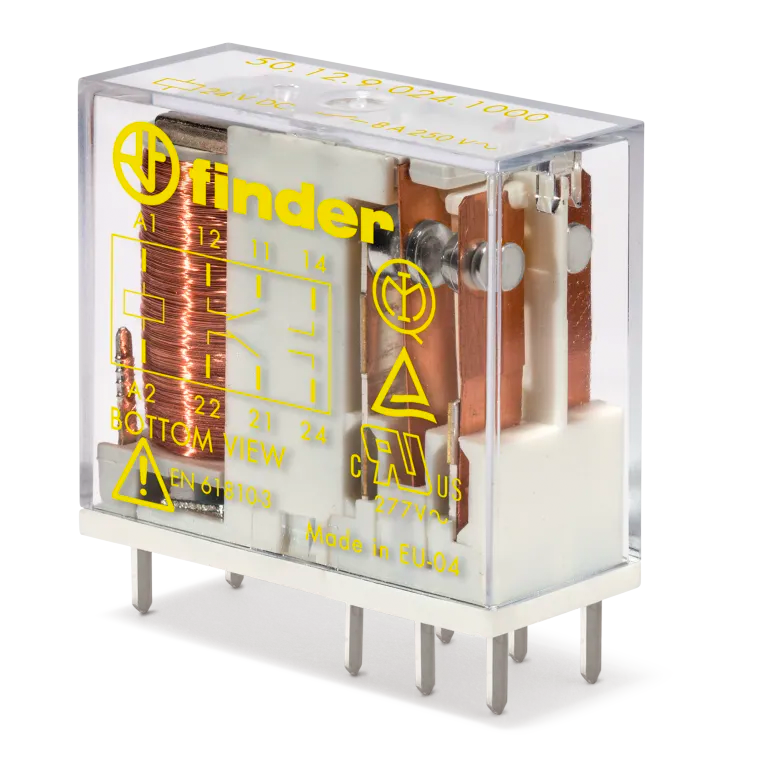

50.12.9.110.5000
Manufacturer
Finder
Manufacturer Product Number
50.12.9.110.5000
Bulk Pricing
Qty. Price
1
10
25
50
100
$27.34
$25.15
$23.29
$21.68
$20.62
Product Description
Description: Safety Relay • Mounting Type: Through Hole • Coil Voltage: 110VDC • Contact Configuration: 2C DPDT • Contact Rating (Current): 8 A • Switching Voltage: 400VAC - Max • Features: Sealed - Flux Protection • Termination Style: PC Pin
Product Information Resources
Manufacturer Finder Product Category Relay Product Sub Category Safety Relay Series 50 Series Model Type 50.12
Product Attribute Attribute Value Mounting Type Through Hole Coil Voltage 110VDC Contact Configuration 2C DPDT Contact Rating (Current) 8 A Switching Voltage 400VAC - Max Features Sealed - Flux Protection Termination Style PC Pin Must Operate Voltage 82.5 VDC Must Release Voltage 11 VDC Operate Time 10 ms Release Time 4 ms Operating Temperature -40°C ~ 70°C Contact Material Silver Nickel (AgNi), Gold (Au)
TYPE 50.12 - FORCIBLY GUIDED CONTACTS RELAY 8A Series Description: Type 50.12 relays for printed circuit board with forcibly guided contacts, according to EN 61810-3 (ex EN 50205) Type B. Relay for switching medium loads, recommended for DC loads. 2 CO 8 A contacts, 5 mm pitch. Contact material: AgNi.
High insulation between adjacent contacts
Cadmium-free contacts
8 mm, 6 kV (1.2/50 ?s) insulation between coil and contacts
Flux proof: RT II
