To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Finder |
| Manufacturer Product Number | 94.02SPA |
| Description | Relay Socket; 55.32 Relays; 8; Screw Terminal; DIN Rail; 94 Series; 10 A; Blue |
| Datasheet | Download Datasheet |

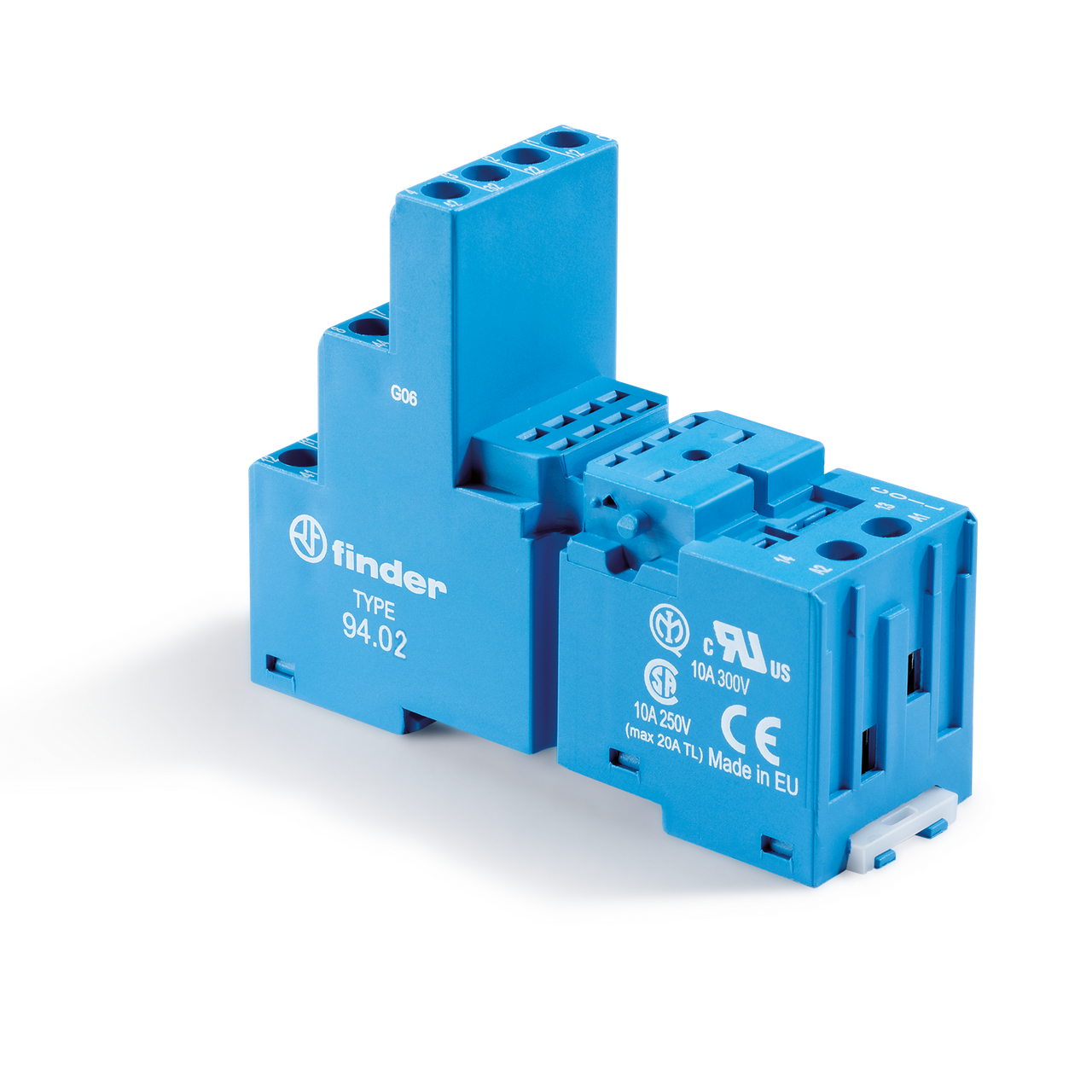

The Finder 94.02SPA is a relay socket for Finder 55.32 Relays, 8-position, screw terminals, DIN Rail mounting, rated 10 A at 250 V and in blue.
It is supplied with a plastic retaining clip. Clips that fit it are metal retaining clip 094.71 and plastic retaining and release clip 094.91.3.
Its terminals accept up to 1x6 / 2x2.5 mm² solid, 1x4 / 2x2.5 mm² stranded (1x10 / 2x14 AWG solid, 1x12 / 2x14 AWG stranded).
| Category | |
| Manufacturer | Finder |
| For Use With | 55.32 Relays |
| Socket Family | 94 Series |
| Model | 94.02 |
| Number of Positions | 8 |
| Termination Style | Screw Terminal |
| Mounting Type | DIN Rail |
| Color | Blue |
| Features | including Clip 094.91.3 |
| Rated Current (A) | 10 |
| Rated Voltage | 250 V |
| Maximum Wire Size | 1x6 / 2x2.5 mm² solid, 1x4 / 2x2.5 mm² stranded (1x10 / 2x14 AWG solid, 1x12 / 2x14 AWG stranded) |
| Retaining Clip | Metal retaining clip 094.71; Plastic retaining and release clip 094.91.3 |
| Supplied Retaining Clip | Plastic retaining clip |
| Operating Temperature (°C) | -40...+70 °C |
| Protection Category | IP 20 |
