Product Description
Description: Switching Power Supply • Input Type: AC or DC • Number of Outputs: 1 • AC Voltage - Input: 110 ~ 240 VAC • Voltage - Output 1: 24V • Current - Output (Max): 2.8A • Power (Watts): 60W • Features: Adjustable Output, IP20
| Product Information | | Resources |
| Manufacturer | Finder | | Product Category | Power Supply | | Product Sub Category | Switching Power Supply | | Series | 78 Series | | Model | Type 78.60 |
| | |
Product Attribute
| Attribute Value
|
| Input Type | AC or DC |
| Number of Outputs | 1 |
| AC Voltage - Input | 110 ~ 240 VAC |
| DC Voltage - Input (Min) | 140V |
| DC Voltage - Input (Max) | 370V |
| Voltage - Output 1 | 24V |
| Current - Output (Max) | 2.8A |
| Power (Watts) | 60W |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Efficiency | 0.91 |
| Operating Temperature | -20°C ~ 70°C (With Derating) |
| Features | Adjustable Output, IP20 |
| Size / Dimension | - |
| Approval Agency | CE, EAC |

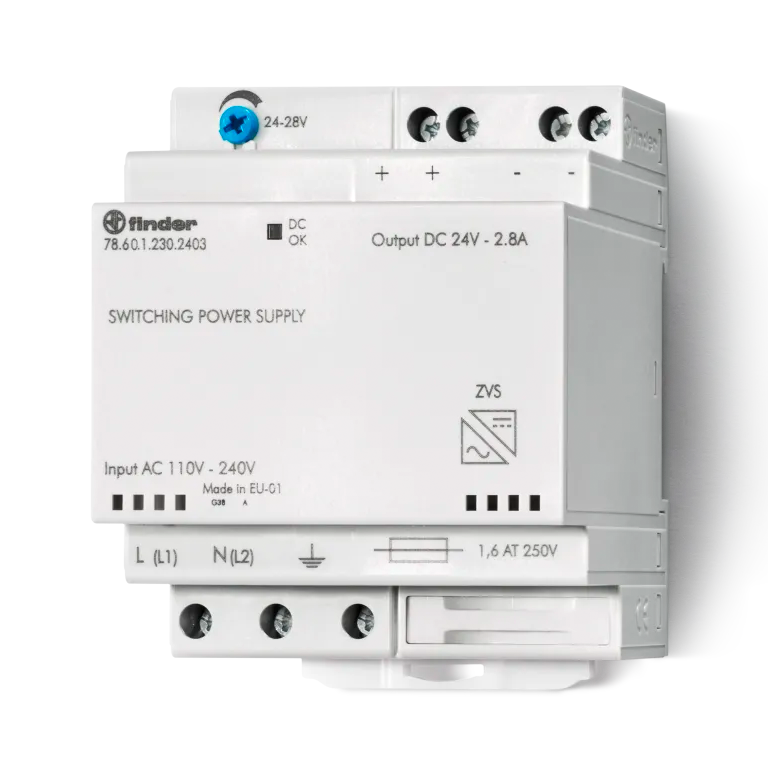

| TYPE 78.60 - SWITCH MODE POWER SUPPLY |
| Series Description: Type 78.60 60 W high efficiency, low profile modular DC power supply for electrical cabinets with ZVS (Zero-voltage-switching), quasi-resonant mode switching. |
- 24 V DC, 60 W output
- High efficiency (up to 91%) Low (< 0.3 W) stand-by power consumption
- Thermal protection: internal, with Vout shutdown – power OFF to reset
- Short circuit protection: Hiccup (auto-recovery) mode
- Overvoltage protection: Varistore
- Flyback topology, ZVS (Zero-voltage-switching), quasi-resonant mode switching
- Compliant with EN 60950-1 and EN 61204-3
- Compact size: 70 mm (4-module) wide, 61 mm deep
|
