Product Description

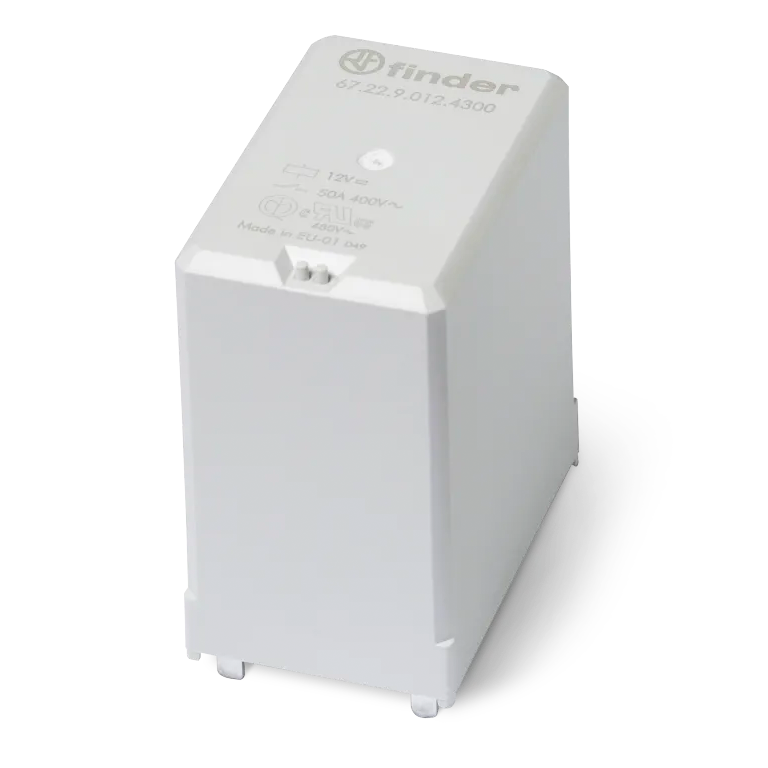

Description: Power Relay • Mounting Type: Through Hole • Coil Voltage: 12VDC • Contact Configuration: 3A 3PST-NO • Contact Rating (Current): 50 A • Switching Voltage: 690VAC - Max • Coil Current: 224 mA • Coil Type: Non Latching • Termination Style: PC Pin
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Mounting Type | Through Hole |
| Coil Voltage | 12VDC |
| Contact Configuration | 3A 3PST-NO |
| Contact Rating (Current) | 50 A |
| Switching Voltage | 690VAC - Max |
| Coil Current | 224 mA |
| Coil Type | Non Latching |
| Termination Style | PC Pin |
| Must Operate Voltage | 10.8 VDC |
| Must Release Voltage | 0.6 VDC |
| Operate Time | 30 ms |
| Release Time | 4 ms |
| Operating Temperature | -40°C ~ 60°C |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Sealing Options | Standard |
| Series Features |
| TYPE 67.22 - POWER RELAY 50A |
| Series Description: Type 67.22 Power relays -x300 for photovoltaic applications 50 A 2 NO for PCB mount, distance between open contacts ? 3 mm |
|
