Product Description
Description: Power Relay • Mounting Type: Chassis Mount • Coil Voltage: 240VAC • Contact Configuration: 2A DPST-NO • Contact Rating (Current): 30 A • Coil Type: Non Latching • Termination Style: Quick Connect - 0.250" (6.3mm)
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Mounting Type | Chassis Mount |
| Coil Voltage | 240VAC |
| Contact Configuration | 2A DPST-NO |
| Contact Rating (Current) | 30 A |
| Switching Voltage | 440VAC - Max |
| Load - Max Switching | 13200VA |
| Coil Current | 15 mA |
| Coil Type | Non Latching |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Must Operate Voltage | 192 VAC |
| Must Release Voltage | 48 VAC |
| Operate Time | 8 ms |
| Release Time | 10 ms |
| Operating Temperature | -40°C ~ 70°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Approval Agency | CE, CSA, cURus, EAC, RINA, UKCA, VDE |
| Series Features |

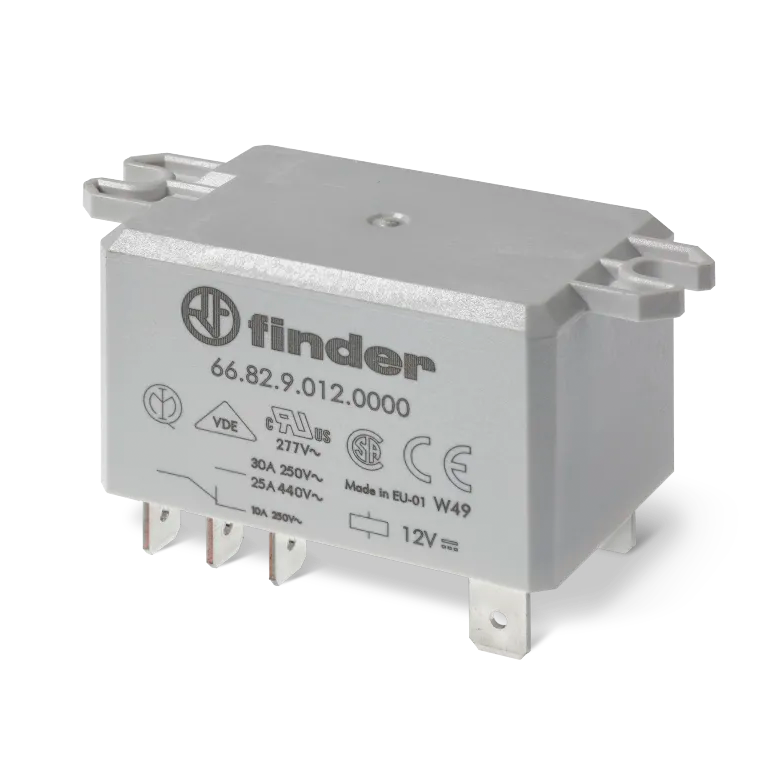

| TYPE 66.82 - POWER RELAY 30A |
| Series Description: Type 66.82 is 2 pole changeover (DPDT) 30A power relay with 250 Faston connections and Flange mount. Variant also available as: -Type 66.82-x30x, 2 Pole NO (DPST-NO), Faston 250 connections and Flange mount -Type 66.82-x60x, 2 Pole NO (DPST- |
|
