To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Finder |
| Manufacturer Product Number | 65.31.9.024.0309 |

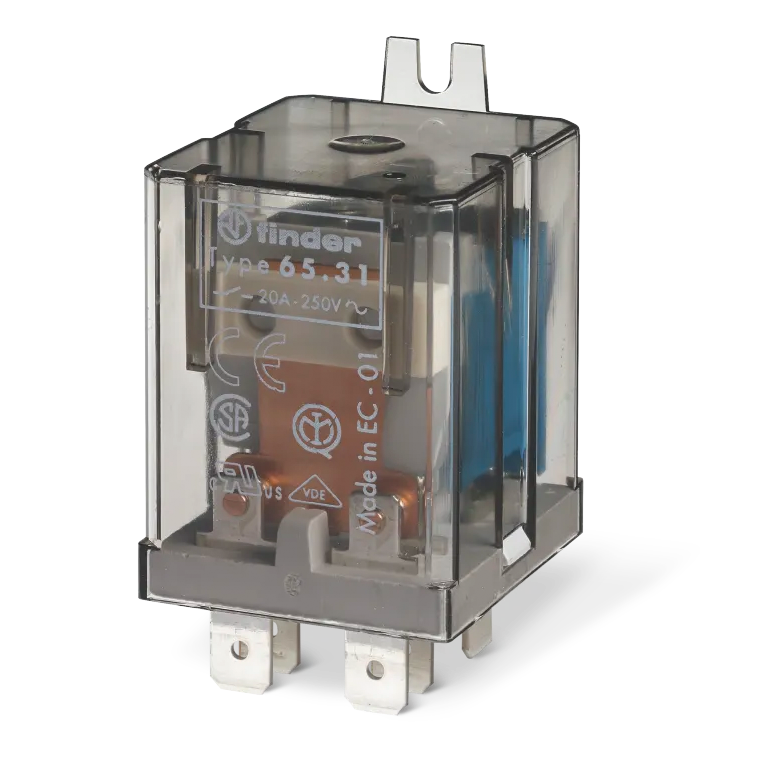

| Description | Power Relay; 24VDC; 20 A; 1A SPST-NO; Socketable; Plug In, QC - 0.250" (6.3mm) |
| Datasheet | Download Datasheet |
Power Relay • Mounting Type: Socketable • Coil Voltage: 24VDC • Contact Configuration: 1A SPST-NO • Contact Rating (Current): 20 A • Coil Type: Non Latching • Termination Style: Plug In, Quick Connect - 0.250" (6.3mm)
| Category | |
| Manufacturer | Finder |
| Mounting Type | Socketable |
| Coil Voltage | 24VDC |
| Contact Configuration | 1A SPST-NO |
| Contact Rating (Current) | 20 A |
| Switching Voltage | 400VAC - Max |
| Load - Max Switching | 8000VA |
| Coil Current | 54 mA |
| Coil Type | Non Latching |
| Termination Style | Plug In, Quick Connect - 0.250" (6.3mm) |
| Must Operate Voltage | 20.4 VDC |
| Must Release Voltage | 4.8 VDC |
| Operate Time | 10 ms |
| Release Time | 12 ms |
| Operating Temperature | -40°C ~ 75°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Approval Agency | CE, CSA, cURus, EAC, ENEC, UKCA, VDE |
