Product Description

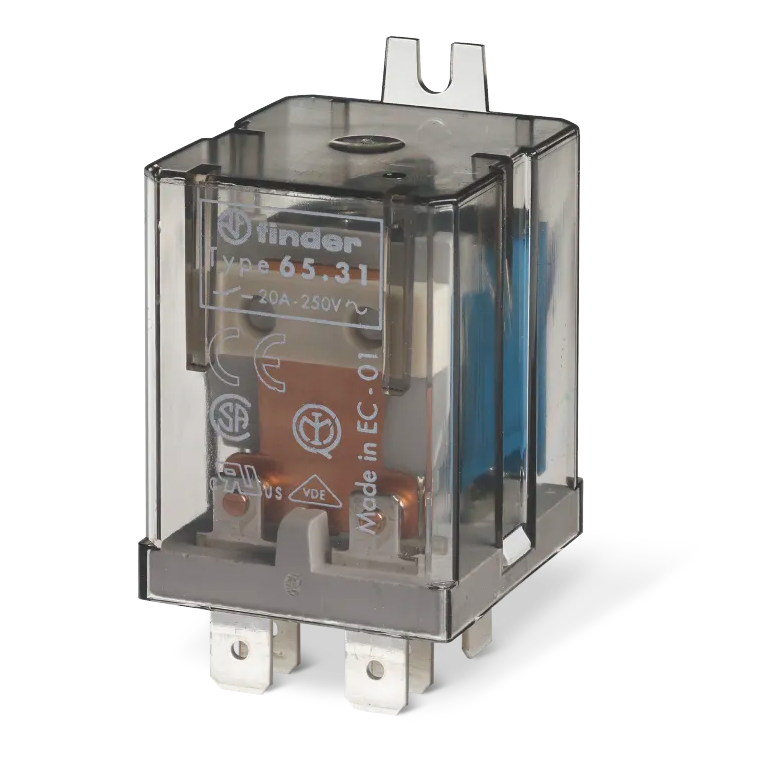

Description: Power Relay • Mounting Type: Chassis Mount • Coil Voltage: 240VAC • Contact Configuration: 1A+1B DPST-NO/NC • Contact Rating (Current): 20 A • Coil Type: Non Latching • Termination Style: Quick Connect - 0.250" (6.3mm)
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Mounting Type | Chassis Mount |
| Coil Voltage | 240VAC |
| Contact Configuration | 1A+1B DPST-NO/NC |
| Contact Rating (Current) | 20 A |
| Switching Voltage | 400VAC - Max |
| Load - Max Switching | 8000VA |
| Coil Current | 9.2 mA |
| Coil Type | Non Latching |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Must Operate Voltage | 192 VAC |
| Must Release Voltage | 48 VAC |
| Operate Time | 10 ms |
| Release Time | 12 ms |
| Operating Temperature | -40°C ~ 75°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Approval Agency | CE, CSA, cURus, EAC, ENEC, UKCA, VDE |
| Series Features |
| TYPE 65.31 - POWER RELAY 20A |
| Series Description: Type 65.31 Power relays, 20 A, NO + NC with mount lugs on the back and Faston 250 connections (6.3 x 0.8 mm). Variant also available as Type 65.31-0300, 30 A rated contacts, flange mount and Faston 250 connections. |
|
