Product Description

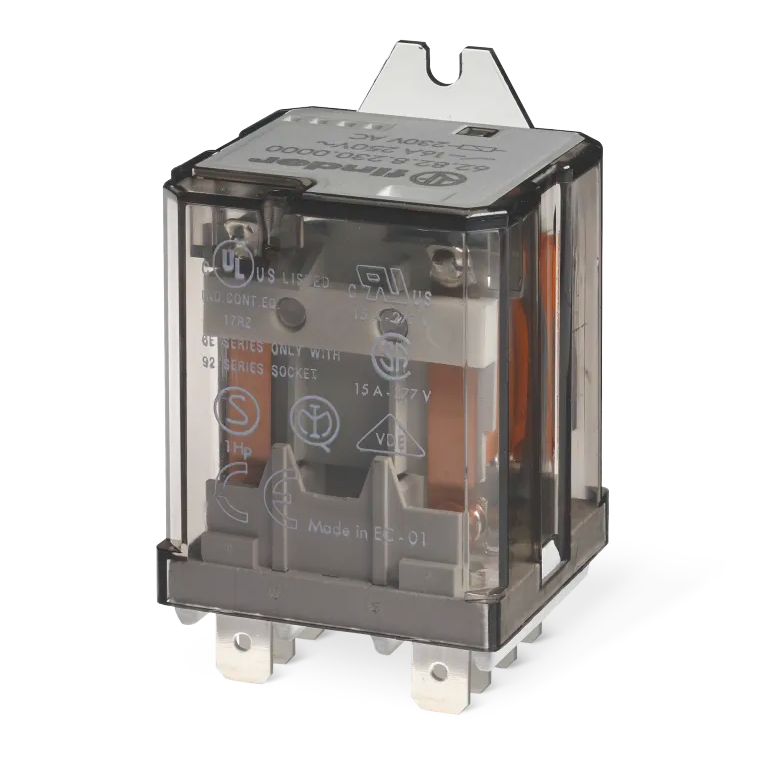

Description: Power Relay • Mounting Type: Chassis Mount • Coil Voltage: 120VAC • Contact Configuration: 2C DPDT • Contact Rating (Current): 16 A • Coil Type: Non Latching • Features: - • Termination Style: Quick Connect - 0.250" (6.3mm)
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Mounting Type | Chassis Mount |
| Coil Voltage | 120VAC |
| Contact Configuration | 2C DPDT |
| Contact Rating (Current) | 16 A |
| Switching Voltage | 400VAC - Max |
| Load - Max Switching | 6400VA |
| Coil Current | 18.6 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Must Operate Voltage | 96 VAC |
| Must Release Voltage | 24 VAC |
| Operate Time | 11 ms |
| Release Time | 4 ms |
| Operating Temperature | -40°C ~ 70°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Approval Agency | CCC, CE, CSA, cURus, EAC, ENEC, RINA, UKCA, VDE |
| Series Features |
| TYPE 62.82 - POWER RELAY 16A |
| Series Description: Type 62.82 power relay with 2 pole changeover contacts and 250 Faston (6.3 x 0.8 mm) connections. Flange or optional mounting adaptors. Available type 62.82-0300 with 2 pole normally open contact (? 3 mm contact gap). |
|
