Product Description
Description: Power Relay • Mounting Type: Socketable • Coil Voltage: 125VDC • Contact Configuration: 3A 3PST-NO • Contact Rating (Current): 16 A • Switching Voltage: 400VAC - Max • Coil Current: 24 mA • Coil Type: Non Latching • Features: Diode, Lighted Indicator • Termination Style: Plug In, Quick Connect - 0.187" (4.7mm)
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Mounting Type | Socketable |
| Coil Voltage | 125VDC |
| Contact Configuration | 3A 3PST-NO |
| Contact Rating (Current) | 16 A |
| Switching Voltage | 400VAC - Max |
| Coil Current | 24 mA |
| Coil Type | Non Latching |
| Features | Diode, Lighted Indicator |
| Termination Style | Plug In, Quick Connect - 0.187" (4.7mm) |
| Must Operate Voltage | 106 VDC |
| Must Release Voltage | 25 VDC |
| Operate Time | 11 ms |
| Release Time | 4 ms |
| Operating Temperature | -40°C ~ 70°C |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Relay Type | General Purpose |
| Series Features |

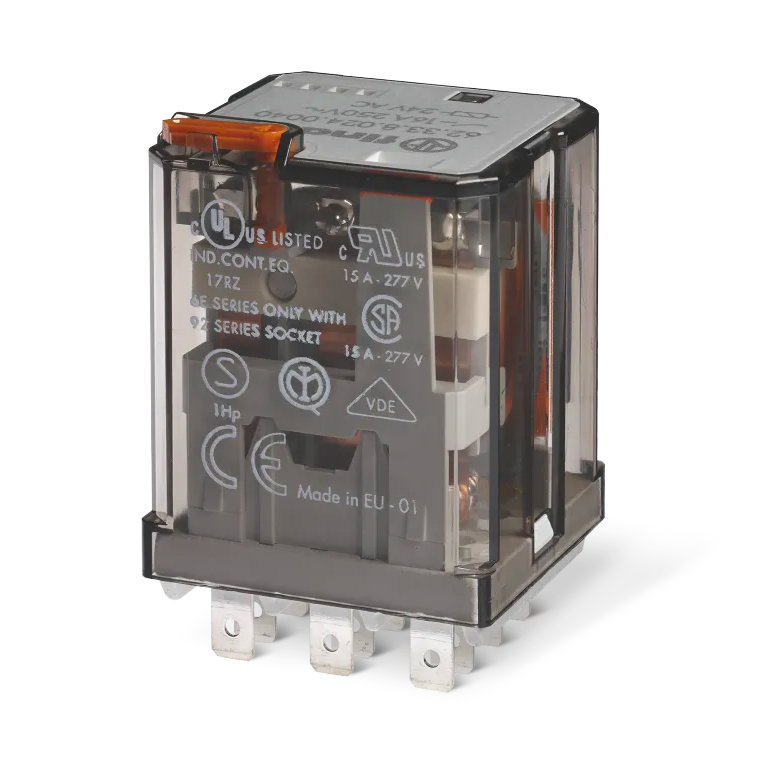

| TYPE 62.33 - POWER RELAY 16A |
| Series Description: Type 62.33 is a power relay, 16 A, for plug-in mounting on socket/Faston 187, 3 CO contacts. Also available as Type 62.33-0300 with 3 NO contacts (gap ? 3 mm). |
|
