To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Finder |
| Manufacturer Product Number | 62.32.8.208.0006 |
| Description | Power Relay; 2C DPDT; 16 A; 208VAC; Non Latching; Socketable |
| Datasheet | Download Datasheet |

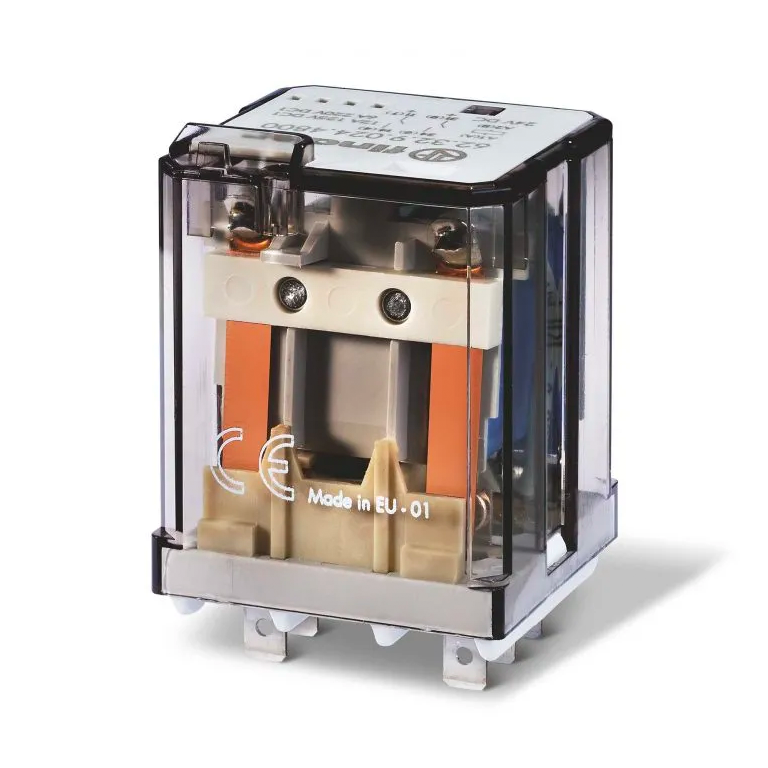

The Finder 62.32.8.208.0006 is a power relay with 2C DPDT contacts, rated 16 A and switching up to 400VAC, driven by a 208VAC coil.
It has Socketable mounting and Plug In, Quick Connect - 0.187" (4.7mm) terminals, contacts in AgCdO and is supplied with rear flange mount.
| Category | |
| Manufacturer | Finder |
| Model | 62.32 |
| Mounting Type | Socketable |
| Coil Voltage | 208VAC |
| Contact Configuration | 2C DPDT |
| Contact Rating (A) | 16 |
| Switching Voltage | 400VAC - Max |
| Contact Material | AgCdO |
| Coil Type | Non Latching |
| Termination Style | Plug In, Quick Connect - 0.187" (4.7mm) |
| Features | Rear Flange Mount |
| Number of Poles | 2 |
| Operate Time (ms) | 11 |
| Release Time (ms) | 4 |
| Operating Temperature (°C) | -40...+70 |
| Rated Load AC1 (VA) | 4000 |
| Mechanical Life (cycles) | 10,000,000 |
| Electrical Life (cycles) | 100,000 |
