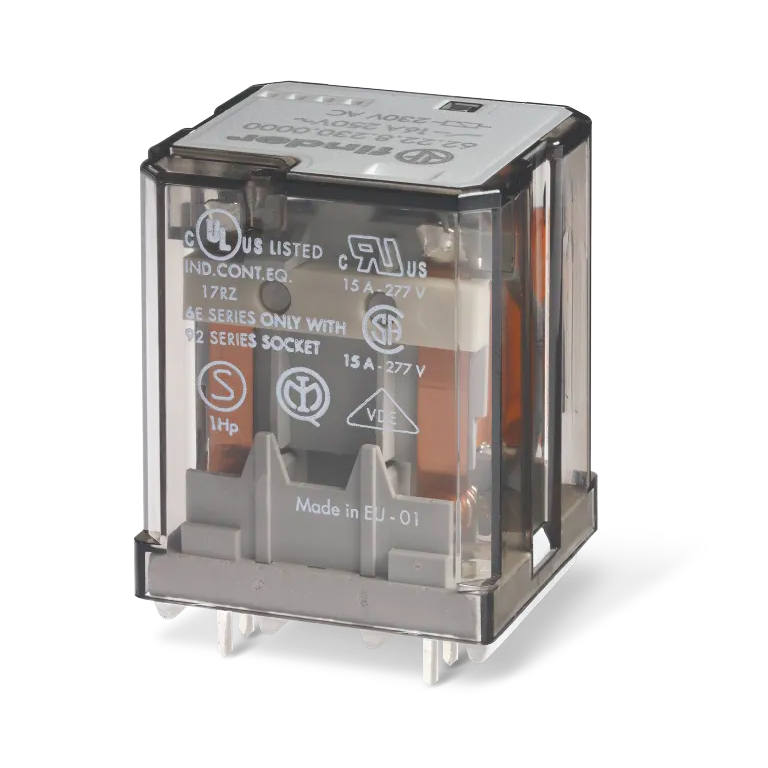

Product Description
Description: Power Relay • Mounting Type: Through Hole • Coil Voltage: 24VDC • Contact Configuration: 2C DPDT • Contact Rating (Current): 16 A • Coil Type: Non Latching • Features: - • Termination Style: PC Pin
| Product Information | | Resources |
| Manufacturer | Finder | | Product Category | Relay | | Product Sub Category | Power Relay | | Series | 62 Series | | Model | Type 60.22 |
| | |
Product Attribute
| Attribute Value
|
| Mounting Type | Through Hole |
| Coil Voltage | 24VDC |
| Contact Configuration | 2C DPDT |
| Contact Rating (Current) | 16 A |
| Switching Voltage | 400VAC - Max |
| Load - Max Switching | 6400VA |
| Coil Current | 54 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Must Operate Voltage | 19.2 VDC |
| Must Release Voltage | 4.8 VDC |
| Operate Time | 11 ms |
| Release Time | 4 ms |
| Operating Temperature | -40°C ~ 50°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Approval Agency | CCC, CSA, cURus, EAC, ENEC, RINA, VDE |
| TYPE 62.22 - POWER RELAY 16A |
| Series Description: Type 62.22 is a power relay, 16 A, for PCB mounting, 2 CO contacts. Variant also available as Type 62.22-0300 (2 NO contacts (gap ? 3 mm) |
- AC or DC coil
- Reinforced insulation between coil and contacts according to EN 60335-1; creepage and clearance of 8/6 mm
- Variant with SELV separator between coil and contacts
- Cadmium-free contact material
|
RoHS Compliant
