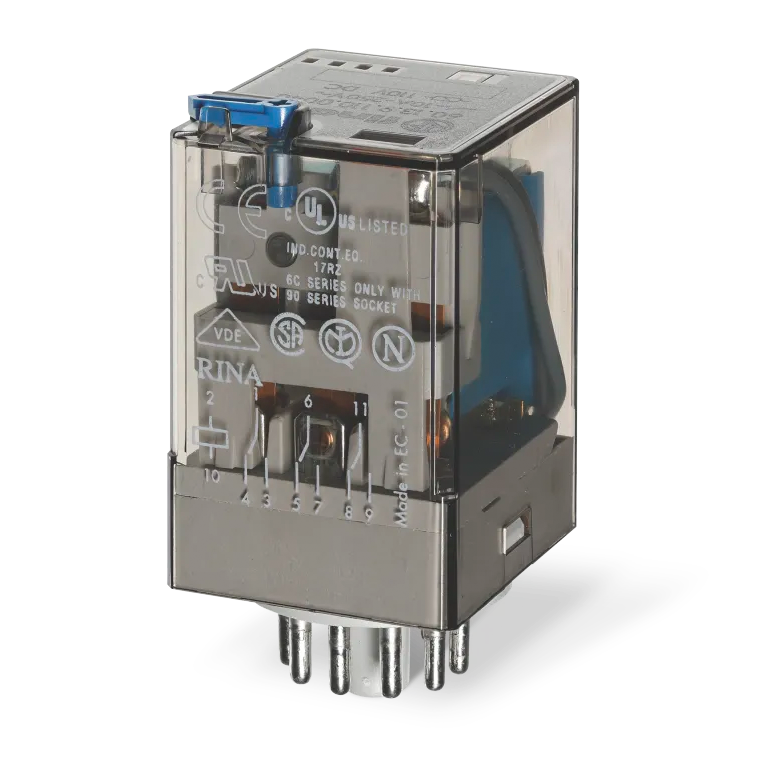

Product Description
Description: Power Relay • Mounting Type: Socketable • Coil Voltage: 24VDC • Contact Configuration: 3C 3PDT • Contact Rating (Current): 10 A • Switching Voltage: 400VAC - Max • Coil Current: 53.9 mA • Coil Type: Non Latching • Features: Mechanical Indicator • Termination Style: PlugIn, 11 Pin(Octal)
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Mounting Type | Socketable |
| Coil Voltage | 24VDC |
| Contact Configuration | 3C 3PDT |
| Contact Rating (Current) | 10 A |
| Switching Voltage | 400VAC - Max |
| Coil Current | 53.9 mA |
| Coil Type | Non Latching |
| Features | Mechanical Indicator |
| Termination Style | PlugIn, 11 Pin(Octal) |
| Must Operate Voltage | 19.2 VDC |
| Must Release Voltage | 4.8 VDC |
| Operate Time | 11 ms |
| Release Time | 4 ms |
| Operating Temperature | -40°C ~ 70°C |
| Contact Material | Silver Nickel (AgNi) |
| Relay Type | General Purpose |
| Series Features |
| TYPE 60.13 - GENERAL PURPOSE RELAY 10A |
| Series Description: Type 60.13 is a general purpose industrial relay, 3 10 A contacts 11 pin plug-in. Available version with bifurcated contacts for low level switching: type 60.13-52xx, 3 pole, 6A, 8 pin plug-in. |
|
