Product Description

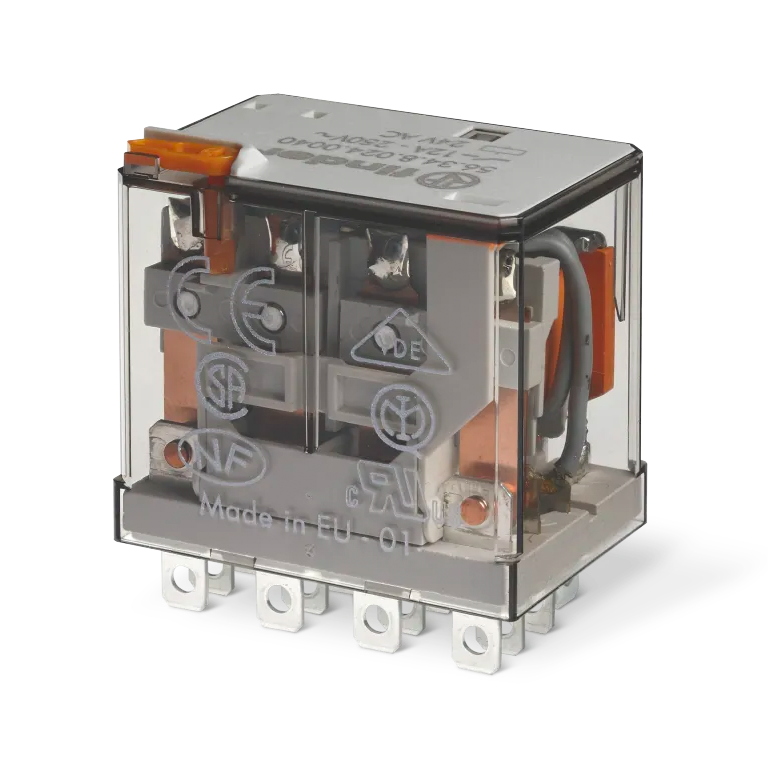

Description: Power Relay • Mounting Type: Socketable • Coil Voltage: 125VDC • Contact Configuration: 4C 4PDT • Contact Rating (Current): 12 A • Coil Type: Non Latching • Features: Mechanical Indicator, Test Button • Termination Style: Plug In, Quick Connect - 0.187" (4.7mm)
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Mounting Type | Socketable |
| Coil Voltage | 125VDC |
| Contact Configuration | 4C 4PDT |
| Contact Rating (Current) | 12 A |
| Switching Voltage | 400VAC - Max |
| Load - Max Switching | 4800VA |
| Coil Current | 8.8 mA |
| Coil Type | Non Latching |
| Features | Mechanical Indicator, Test Button |
| Termination Style | Plug In, Quick Connect - 0.187" (4.7mm) |
| Must Operate Voltage | 100 VDC |
| Must Release Voltage | 25 VDC |
| Operate Time | 11 ms |
| Release Time | 11 ms |
| Operating Temperature | -40°C ~ 70°C |
| Contact Material | Silver Nickel (AgNi) |
| Approval Agency | CCC, CE, CSA, cURus, EAC, ENEC, RINA, UKCA, VDE |
| Series Features |
| TYPE 56.32/34 - MINIATURE POWER RELAY 12A |
| Series Description: Type 56.32 and Type 56.34 are miniature power relays 12 A with 2 or 4 pole changeover contacts for plug-in mount on sockets/187 Faston |
|
