| Manufacturer | Finder |
| Manufacturer Product Number | 56.34.9.012.0074 |
| Description | Power Relay; 4C 4PDT; 12 A; 12VDC; Non Latching; Socketable |
| Datasheet | Download Datasheet |

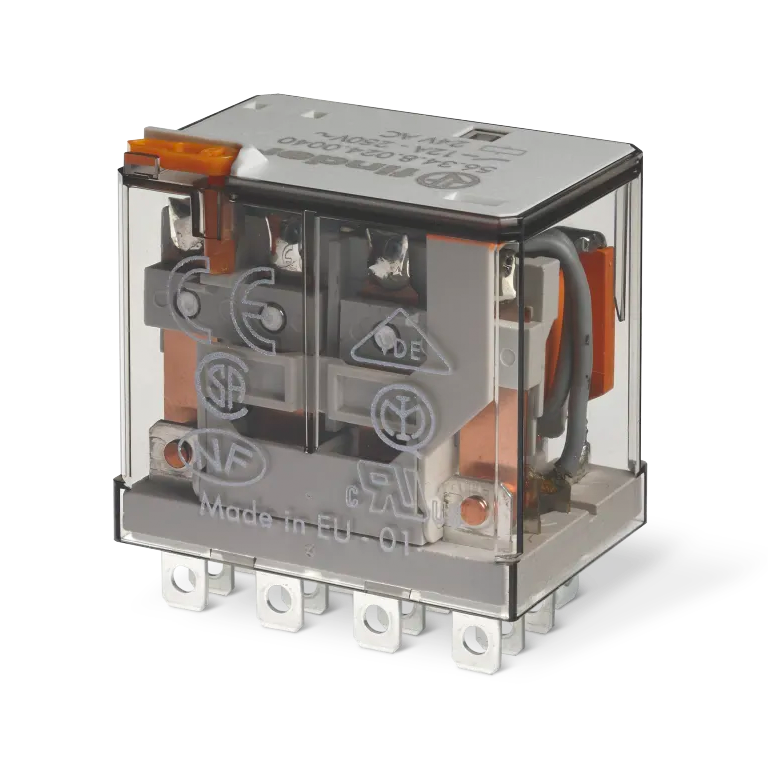

The Finder 56.34.9.012.0074 is a power relay with 4C 4PDT contacts, rated 12 A and switching up to 400VAC, driven by a 12VDC coil and drawing 97 mA.
It has Socketable mounting and Plug In, Quick Connect - 0.187" (4.7mm) terminals, contacts in AgNi and is supplied with lighted indicator, mechanical indicator, test button.
| Category | |
| Manufacturer | Finder |
| Model | 56.34 |
| Mounting Type | Socketable |
| Coil Voltage | 12VDC |
| Contact Configuration | 4C 4PDT |
| Contact Rating (A) | 12 |
| Switching Voltage | 400VAC - Max |
| Contact Material | AgNi |
| Coil Current (mA) | 97 |
| Coil Resistance (ohm) | 123 |
| Coil Type | Non Latching |
| Termination Style | Plug In, Quick Connect - 0.187" (4.7mm) |
| Must Operate Voltage | 9.6 V |
| Must Drop-Out Voltage | 1.2 V |
| Features | Lighted Indicator, Mechanical Indicator, Test Button |
| Number of Poles | 4 |
| Operate Time (ms) | 11 |
| Release Time (ms) | 11 |
| Operating Temperature (°C) | -40...+70 |
| Rated Load AC1 (VA) | 3000 |
| Mechanical Life (cycles) | 50,000,000 |
| Electrical Life (cycles) | 100,000 |
