Product Description
Description: Power Relay • Mounting Type: Socketable • Coil Voltage: 24VDC • Contact Form: 2C DPDT • Contact Rating (Current): 12 A • Coil Type: Non Latching • Features: - • Termination Style: Plug In, Quick Connect - 0.187" (4.7mm)
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Mounting Type | Socketable |
| Coil Voltage | 24VDC |
| Contact Form | 2C DPDT |
| Contact Rating (Current) | 12 A |
| Switching Voltage | 400VAC - Max |
| Load - Max Switching | 4800VA |
| Coil Current | 40 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Plug In, Quick Connect - 0.187" (4.7mm) |
| Must Operate Voltage | 16.8 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 8 ms |
| Release Time | 8 ms |
| Operating Temperature | -40°C ~ 70°C |
| Contact Material | Silver Nickel (AgNi) |
| Approval Agency | CCC, CE, CSA, cURus, EAC, ENEC, RINA, UKCA, VDE |
| Series Features |

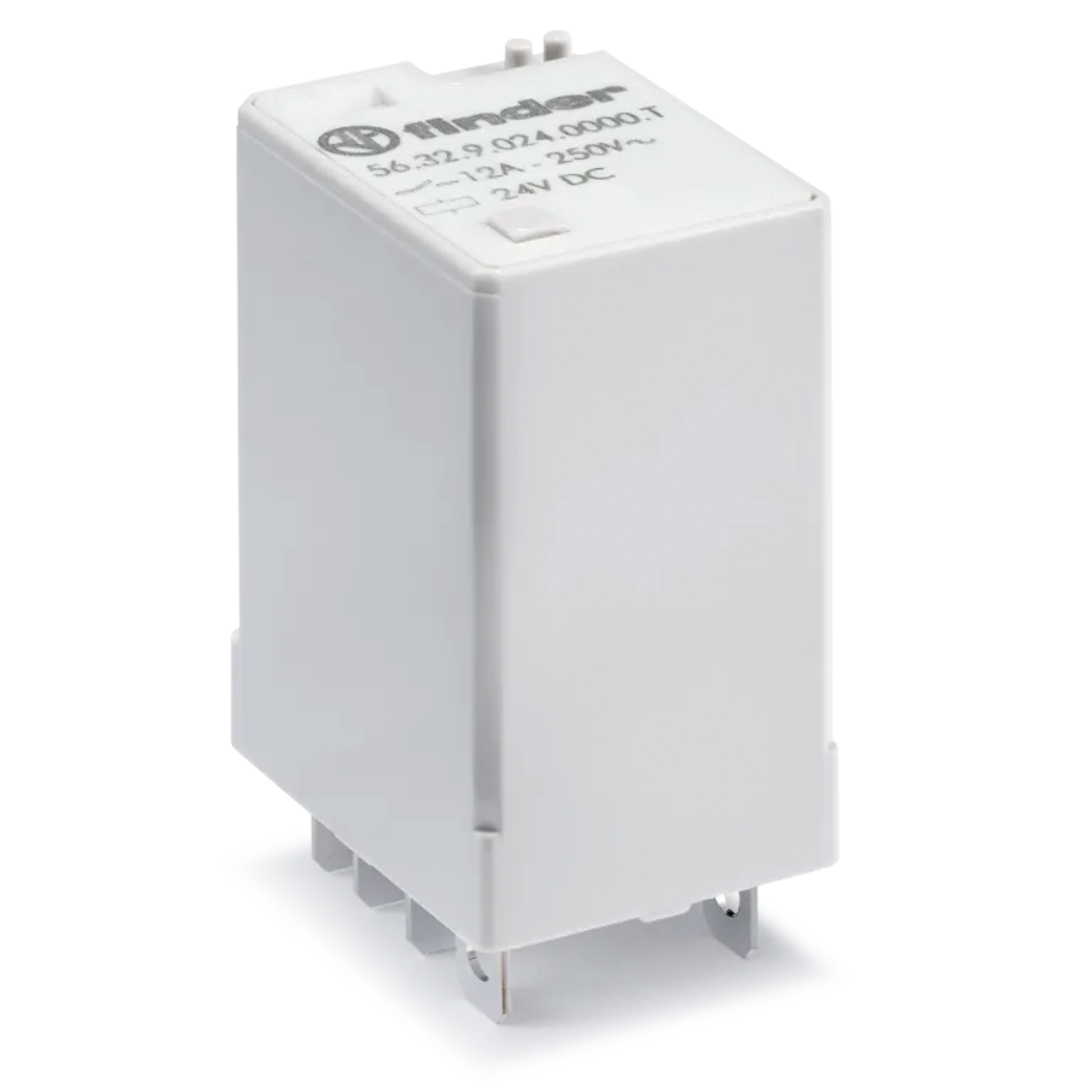

| TYPE 56.32T - RELAY FOR RAILWAY APPLICATIONS 12A |
| Series Description: Power relays for railway applications Type 56.32T, 2 changeover, 12 A, with socket on sockets/Faston 187. |
|
