Product Description

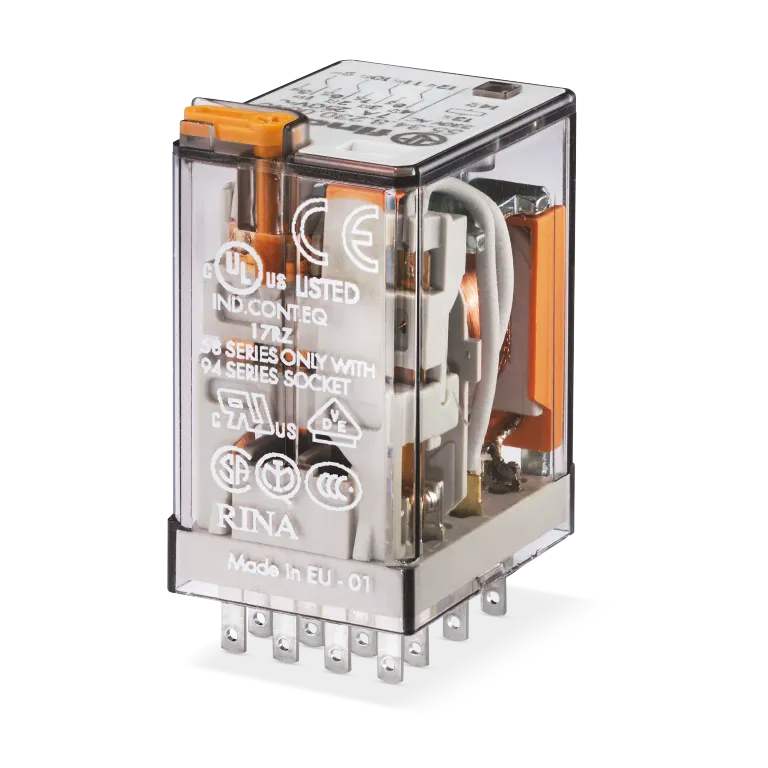

Description: Power Relay • Mounting Type: Socketable • Coil Voltage: 12VDC • Contact Configuration: 4C 4PDT • Contact Rating (Current): 7 A • Switching Voltage: 250VAC - Max • Coil Current: 86 mA • Coil Type: Non Latching • Features: Lighted Indicator • Termination Style: Plug In
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Mounting Type | Socketable |
| Coil Voltage | 12VDC |
| Contact Configuration | 4C 4PDT |
| Contact Rating (Current) | 7 A |
| Switching Voltage | 250VAC - Max |
| Coil Current | 86 mA |
| Coil Type | Non Latching |
| Features | Lighted Indicator |
| Termination Style | Plug In |
| Must Operate Voltage | 9.6 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 9 ms |
| Release Time | 5 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver Nickel (AgNi) |
| Relay Type | General Purpose |
| Series Features |
| TYPE 55.34 - GENERAL PURPOSE RELAY 7A |
| Series Description: Type 55.34 General purpose plug-in relay2. 4 CO 7 A. For use with 94 Series sockets |
|
