Product Description
Description: Power Relay • Mounting Type: Socketable • Coil Voltage: 24VDC • Contact Configuration: 2C DPDT • Contact Rating (Current): 10 A • Coil Type: Non Latching • Features: Lighted Indicator, Mechanical Indicator, Test Button • Termination Style: Plug In
| Product Information | | Resources |
| Manufacturer | Finder | | Product Category | Relay | | Product Sub Category | Power Relay | | Series | 55 Series | | Model | Type 55.32 |
| | |
Product Attribute
| Attribute Value
|
| Mounting Type | Socketable |
| Coil Voltage | 24VDC |
| Contact Configuration | 2C DPDT |
| Contact Rating (Current) | 10 A |
| Switching Voltage | 400VAC - Max |
| Load - Max Switching | 4000VA |
| Coil Current | 40 mA |
| Coil Type | Non Latching |
| Features | Lighted Indicator, Mechanical Indicator, Test Button |
| Termination Style | Plug In |
| Seal Rating | - |
| Must Operate Voltage | 19.2 VDC |
| Must Release Voltage | 4.8 VDC |
| Operate Time | 10 ms |
| Release Time | 5 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver Nickel (AgNi) |
| Approval Agency | CCC, CE, CSA, cURus, EAC, ENEC, RINA, UKCA, VDE |

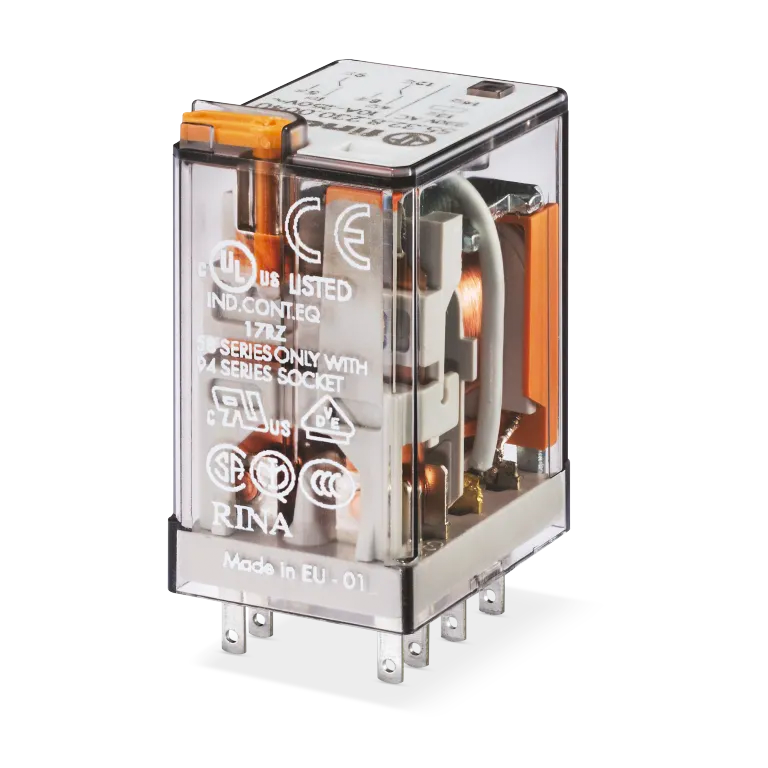

| TYPE 55.32 - GENERAL PURPOSE RELAY 10A |
| Series Description: Type 55.32 General purpose plug-in relays. 2 CO 10 A. For use with 94 Series sockets. |
- AC or DC coil
- Lockable test button option and mechanical indicator as standard
- Variant with LED and integrated protection circuit
- For use with 94 Series sockets for printed circuit board, solder or for 35mm rail mount (EN 60715) with push-in, screw or screwless terminals
- For use with 99 Series coil indication and EMC suppression modules and Type 86.30 timer modules
- Adaptors for alternative mount available
- UL Listing (relay/socket/jumper link)
- Cadmium-free contacts
- Contact material options
- European patent
|
RoHS Compliant
