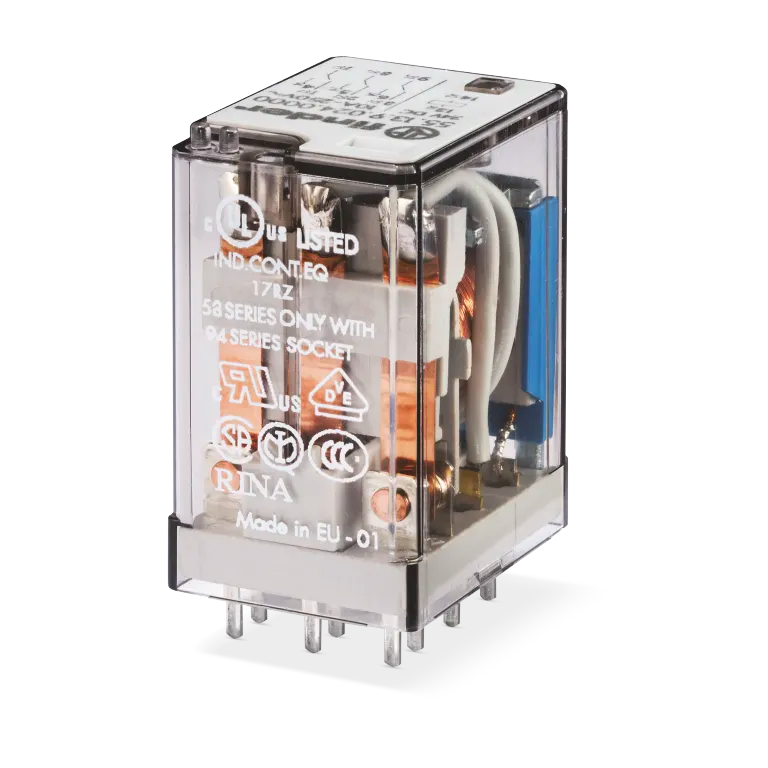

Product Description
Description: Power Relay • Mounting Type: Through Hole • Coil Voltage: 48VDC • Contact Configuration: 3C 3PDT • Contact Rating (Current): 10 A • Coil Type: Non Latching • Features: - • Termination Style: PC Pin
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Mounting Type | Through Hole |
| Coil Voltage | 48VDC |
| Contact Configuration | 3C 3PDT |
| Contact Rating (Current) | 10 A |
| Switching Voltage | 400VAC - Max |
| Load - Max Switching | 4000VA |
| Coil Current | 20 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Fully |
| Must Operate Voltage | 38.4 VDC |
| Must Release Voltage | 9.6 VDC |
| Operate Time | 9 ms |
| Release Time | 5 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver Nickel (AgNi), Gold (Au) |
| Approval Agency | CCC, CSA, cURus, EAC, ENEC, RINA, VDE |
| Series Features |
| TYPE 55.13 - GENERAL PURPOSE RELAYS 10A |
| Series Description: Type 55.13 General purpose PCB relays, 3 CO 10 A. |
|
