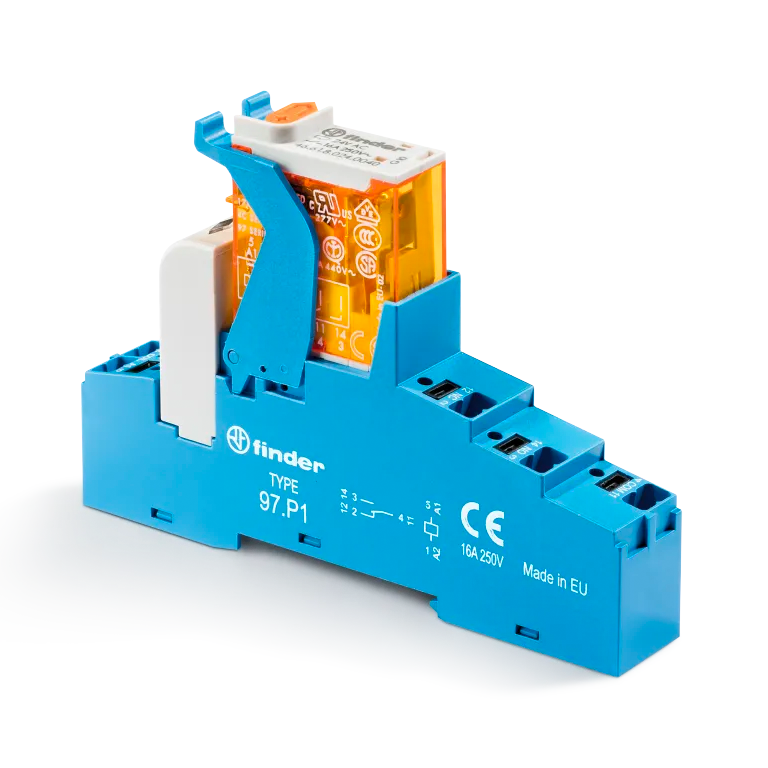

Product Description
Description: Power Relay • Mounting Type: DIN Rail • Coil Voltage: 12VDC • Contact Form: 1C SPDT • Contact Rating (Current): 10 A • Coil Type: Non Latching • Features: Diode, Lighted Indicator • Termination Style: Spring Terminal • Relay Type: Interface Module
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Mounting Type | DIN Rail |
| Coil Voltage | 12VDC |
| Contact Form | 1C SPDT |
| Contact Rating (Current) | 10 A |
| Switching Voltage | 440VAC - Max |
| Load - Max Switching | 4400VA |
| Coil Current | 40 mA |
| Coil Type | Non Latching |
| Features | Diode, Lighted Indicator |
| Termination Style | Spring Terminal |
| Must Operate Voltage | 8.8 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 15 ms |
| Release Time | 12 ms |
| Operating Temperature | -40°C ~ 70°C |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Relay Type | Interface Module |
| Series Features |
| TYPE 4C.P1 - RELAY INTERFACE MODULES 10A |
| Series Description: Type 4C.P1 Relay Interface Modules, 1 CO 10 A, Push-in terminals, 15.8 mm wide. For interfacing with PLC systems. |
|
