To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Finder |
| Manufacturer Product Number | 48.P3.7.024.0050.SPA |
| Description | Power Relay; 1C SPDT; 10 A; 24VDC; Non Latching; DIN Rail; Spring Terminal |
| Datasheet | Download Datasheet |

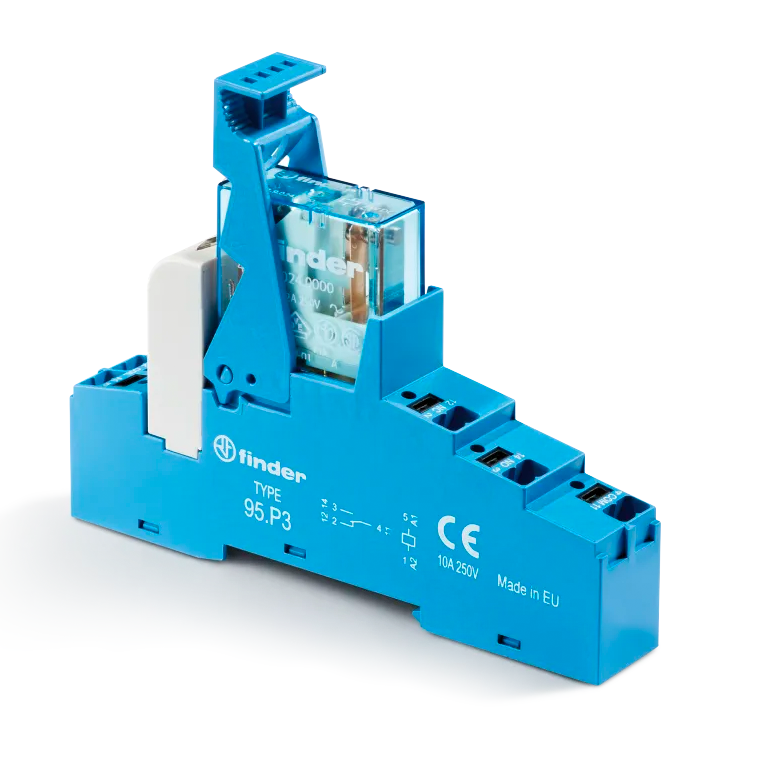

The Finder 48.P3.7.024.0050.SPA is a power relay with 1C SPDT contacts, rated 10 A and switching up to 400VAC, driven by a 24VDC coil and drawing 22.2 mA.
It has DIN Rail mounting and spring terminals, contacts in AgNi and is supplied with green LED + diode (polarity +A1), plastic retaining clip.
| Category | |
| Manufacturer | Finder |
| Model | 48.P3 |
| Mounting Type | DIN Rail |
| Coil Voltage | 24VDC |
| Contact Configuration | 1C SPDT |
| Contact Rating (A) | 10 |
| Switching Voltage | 400VAC - Max |
| Contact Material | AgNi |
| Coil Current (mA) | 22.2 |
| Coil Type | Non Latching |
| Termination Style | Spring Terminal |
| Must Operate Voltage | 17.5 V |
| Must Drop-Out Voltage | 2.4 V |
| Features | Green LED + diode (polarity +A1), Plastic retaining clip |
| Number of Poles | 1 |
| Operate Time (ms) | 12 |
| Release Time (ms) | 12 |
| Operating Temperature (°C) | -40...+70 °C |
| Rated Load AC1 (VA) | 2500 |
| Mechanical Life (cycles) | 10,000,000 cycles |
| Electrical Life (cycles) | 200,000 cycles |
