Product Description

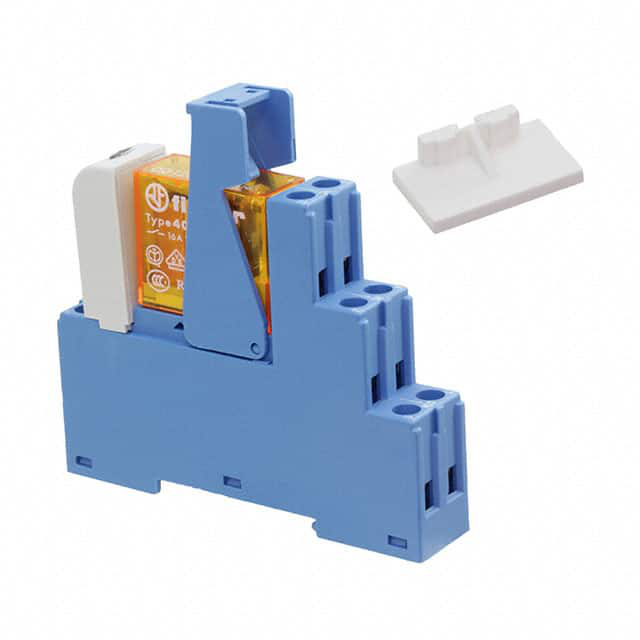

Description: Power Relay • Mounting Type: DIN Rail • Coil Voltage: 120VAC • Contact Configuration: 1C SPDT • Contact Rating (Current): 16 A • Coil Type: Non Latching • Features: Lighted Indicator, Varistor • Termination Style: Screw Terminal • Relay Type: Interface Module
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Mounting Type | DIN Rail |
| Coil Voltage | 120VAC |
| Contact Configuration | 1C SPDT |
| Contact Rating (Current) | 16 A |
| Switching Voltage | 400VAC - Max |
| Load - Max Switching | 6400VA |
| Coil Current | 11.8 mA |
| Coil Type | Non Latching |
| Features | Lighted Indicator, Varistor |
| Termination Style | Screw Terminal |
| Must Operate Voltage | 96 VAC |
| Must Release Voltage | 24 VAC |
| Operate Time | 7 ms |
| Release Time | 4 ms |
| Operating Temperature | -40°C ~ 70°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Relay Type | Interface Module |
| Approval Agency | CE, CSA, cURus EAC, RINA, UKCA, VDE |
| Series Features |
| TYPE 48.61 - RELAY INTERFACE MODULE 16A |
| Series Description: Type 48.61 relay interface module with 1CO 16A contacts and screw terminals. |
|
