To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Finder |
| Manufacturer Product Number | 46.61.9.125.0040 |
| Description | Power Relay; 1C SPDT; 16 A; 125VDC; Non Latching; Socketable |
| Datasheet | Download Datasheet |

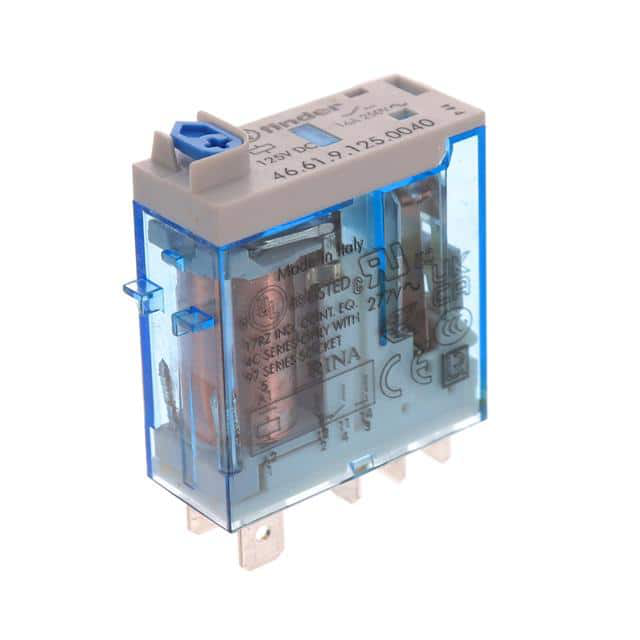

The Finder 46.61.9.125.0040 is a power relay with 1C SPDT contacts, rated 16 A and switching up to 440VAC, driven by a 125VDC coil and drawing 3.9 mA.
It has Socketable mounting and Plug In, Quick Connect - 0.187" (4.7mm) terminals, contacts in AgNi and is supplied with mechanical indicator, test button.
| Category | |
| Manufacturer | Finder |
| Model | 46.61 |
| Mounting Type | Socketable |
| Coil Voltage | 125VDC |
| Contact Configuration | 1C SPDT |
| Contact Rating (A) | 16 |
| Switching Voltage | 440VAC - Max |
| Contact Material | AgNi |
| Coil Current (mA) | 3.9 |
| Coil Resistance (ohm) | 32000 |
| Coil Type | Non Latching |
| Termination Style | Plug In, Quick Connect - 0.187" (4.7mm) |
| Must Operate Voltage | 91.2 V |
| Must Drop-Out Voltage | 12.5 V |
| Seal Rating | Sealed - Flux Protection |
| Features | Mechanical Indicator, Test Button |
| Number of Poles | 1 |
| Operate Time (ms) | 15 |
| Release Time (ms) | 5 |
| Operating Temperature (°C) | -40...+70 |
| Rated Load AC1 (VA) | 4000 |
| Mechanical Life (cycles) | 10,000,000 |
| Electrical Life (cycles) | 100,000 |
