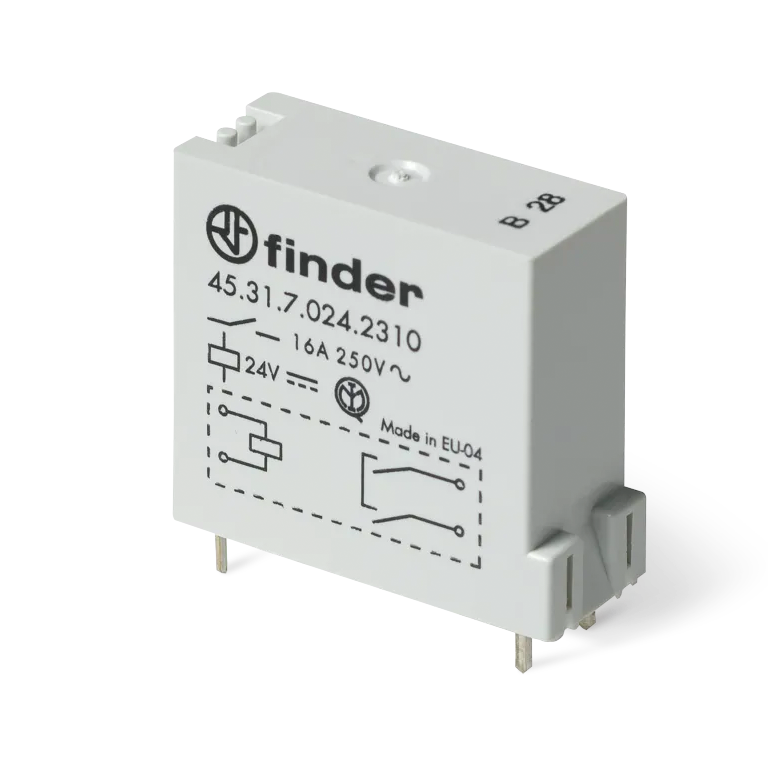

Product Description
Description: Power Relay • Mounting Type: Through Hole • Coil Voltage: 24VDC • Contact Configuration: 1A SPST-NO • Contact Rating (Current): 16 A • Switching Voltage: 400VAC - Max • Coil Current: 15 mA • Coil Type: Non Latching • Termination Style: PC Pin, Quick Connect - 0.250" (6.3mm)
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Mounting Type | Through Hole |
| Coil Voltage | 24VDC |
| Contact Configuration | 1A SPST-NO |
| Contact Rating (Current) | 16 A |
| Switching Voltage | 400VAC - Max |
| Load - Max Switching | 6400VA |
| Coil Current | 15 mA |
| Coil Type | Non Latching |
| Termination Style | PC Pin, Quick Connect - 0.250" (6.3mm) |
| Seal Rating | Sealed - Flux Protection |
| Must Operate Voltage | 16.8 VDC |
| Must Release Voltage | - |
| Operate Time | 12 ms |
| Release Time | 2 ms |
| Operating Temperature | -40°C ~ 105°C |
| Contact Material | Silver Nickel (AgNi) |
| Approval Agency | cURus, EAC, ENEC, VDE |
| Series Features |
| TYPE 45.31 - MINIATURE PCB RELAY |
| Series Description: Type 45.31 miniature PCB relays, suitable for max ambient temperature +105 ° C, and for mounting on printed circuits. Wide contact gap. – 45.31… x310, 1 normally open contact (distance between contacts ? 3 mm) – 45.31… 0610, 1 normally open |
|
