Product Description

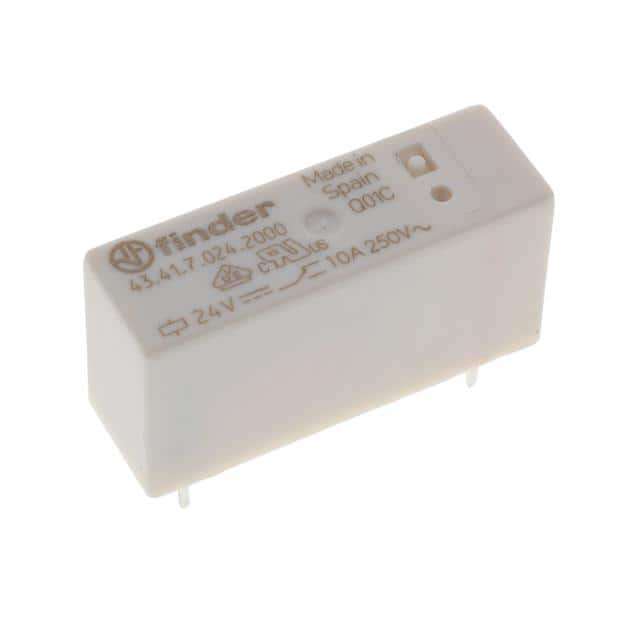

Description: Power Relay • Mounting Type: Through Hole • Coil Voltage: 24VDC • Contact Configuration: 1C SPDT • Contact Rating (Current): 10 A • Switching Voltage: 400VAC - Max • Coil Current: 10.9 mA • Coil Type: Non Latching • Termination Style: PC Pin
| Product Information | Resources |
|
|
RoHS Compliant| Specifications |
| Product Attribute | Attribute Value |
| Mounting Type | Through Hole |
| Coil Voltage | 24VDC |
| Contact Configuration | 1C SPDT |
| Contact Rating (Current) | 10 A |
| Switching Voltage | 400VAC - Max |
| Coil Current | 10.9 mA |
| Coil Type | Non Latching |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Flux Protection |
| Must Operate Voltage | 16.8 VDC |
| Must Release Voltage | - |
| Operate Time | 6 ms |
| Release Time | 4 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Relay Type | General Purpose |
| Series Features |
| TYPE 43.41 - LOW PROFILE PCB RELAYS 10A |
| Series Description: Type 43.41 low profile PCB relays, 1 CO, 10 A (3.2 mm pin pitch), for direct PCB mounting or with Type 95.23 PCB socket. |
|
