Product Description
Description: Power Relay • Mounting Type: Through Hole • Coil Voltage: 24VDC • Contact Configuration: 1C SPDT • Contact Rating (Current): 16 A • Coil Type: Non Latching • Termination Style: PC Pin • Seal Rating: -
| Product Information | | Resources |
| Manufacturer | Finder | | Product Category | Relay | | Product Sub Category | Power Relay | | Series | 41 Series | | Model | Type 41.61 |
| | |
Product Attribute
| Attribute Value
|
| Mounting Type | Through Hole |
| Coil Voltage | 24VDC |
| Contact Configuration | 1C SPDT |
| Contact Rating (Current) | 16 A |
| Switching Voltage | 400VAC - Max |
| Load - Max Switching | 6400VA |
| Coil Current | 16.7 mA |
| Coil Type | Non Latching |
| Termination Style | PC Pin |
| Seal Rating | - |
| Must Operate Voltage | 16.8 VDC |
| Must Release Voltage | 3.6 VDC |
| Operate Time | 8 ms |
| Release Time | 6 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver Nickel (AgNi) |
| Approval Agency | cURus, EAC, ENEC, RINA, VDE |

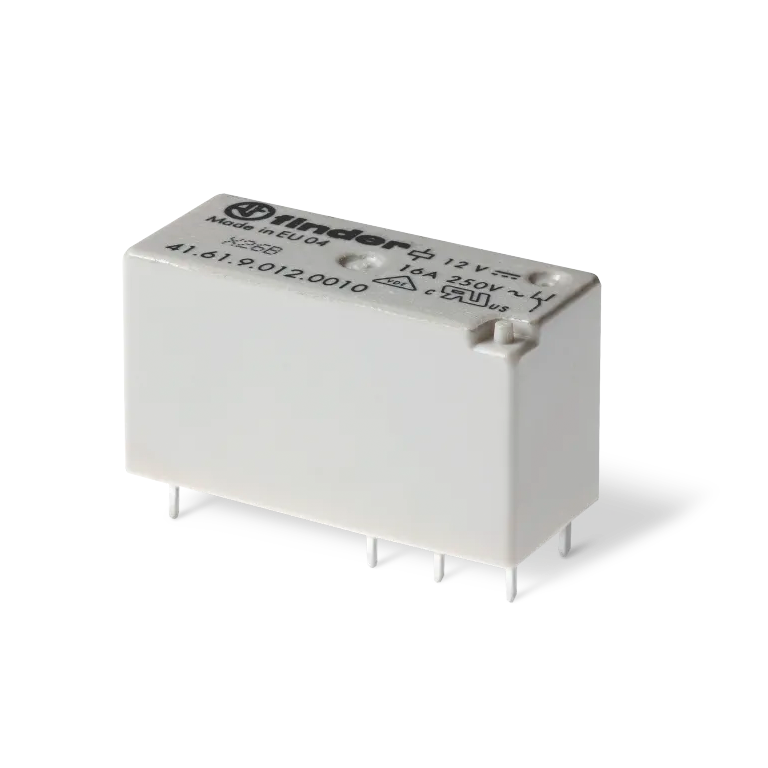

| TYPE 41.61 - LOW PROFILE PCB RELAY 16A |
| Series Description: Type 41.61 low profile relay with 1 Pole 16 A CO contacts (5.0 mm pin pitch) for PCB mount, direct or via PCB socket. Available Type 41.61.6.xxx, 1 pole, 16A, PCB direct mount. |
- AC and DC coils
- 8 mm, 6 kV (1.2/50 ?s) isolation, coil-contacts
- Cadmium-free contact material
- Flux proof: RT II standard, (RT III option)
|
RoHS Compliant
